BIC-20AWGRED12

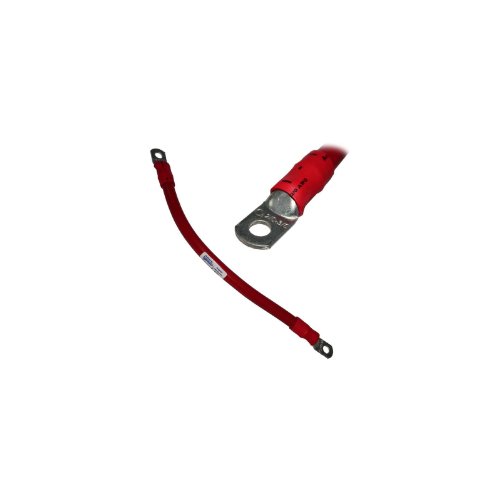

AWG #2/0 Red Battery Interconnect Cable 12 with 3/8 Lugs

Terminals & Ends

AWG #2/0 Red Battery Interconnect Cable 12" with 3/8" Lugs MADE& SHIP IN USA
Length: 12.000
BIAF
Sealed Lead Acid > Chargers & Accessories

AWG #2/0 Red Battery Interconnect Cable - 12 Inches Why use larger cable? Very high current flows in the cables that connect an inverter to the batteries, even in a Low-Voltage power system. Household appliances can draw over 100 amps, and motors may draw up to 500 amps. Larger cables allow the inverter to draw the current needed to support a large load. Use these cables between individual battery cells or between battery banks. Use 2/0 cables for 175-amp and 200-amp fuses. Circuits protected by 250-amp breakers or 400-amp fuses should use 4/0 cables. Cables are marked in red heat-shrink tubing for positive and white on black heat-shrink for negative. Features of the 12" Cable Plated Copper Lugs: These UL-listed lugs are made from tin-plated copper tubing with 3/8" holes, soldered or crimped to a stranded cable. Heat-Shrink Tubing: This tubing insulates the copper lugs and compression terminals. Tubing shrinks and glue inside melts when heated, sealing wires against corrosion and moisture. UL-Listed Battery Cable: This fine-stranded, very flexible cable is UL-listed for use as battery cable. It is rated MTW/THW/AWM, 600 Volt, sunlight resistant, direct burial, 105 degrees C. Available in red or black. Also known as: 052-05121-R SpecificationsBrand: BIAF   Color: Red   Length: 12"
