Terminals & Ends Exell Battery BIC-20AWGBLK12

Exell Battery

BIC-20AWGBLK12

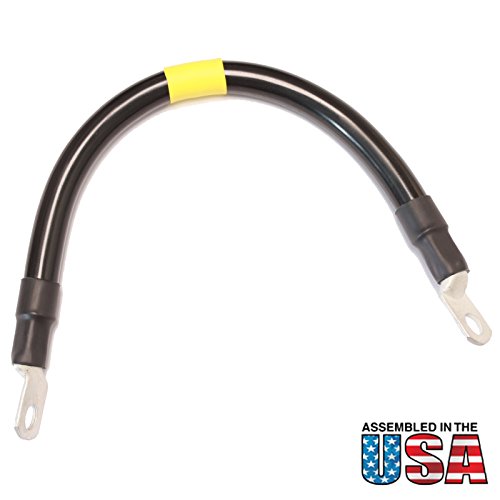

12 Black AWG 2/0 Battery Interconnect Copper Cable 3/8 w/ Lugs Battery Banks, Off Grid, Solar Power, Backup Grid, SLA AGM Deep Cycle, Golf Cart, Emergency Systems DURABLE ASSEMBLED IN THE USA

EAN: 0029160025654

UPC: 029160025654

Terminals & Ends


Plated copper lugs: These UL-listed lugs are made from tin-plated copper tubing with 3/8" holes
Heat-shrink tubing: This tubing insulates the copper lugs and compression terminals
UL-listed battery cable: This fine-stranded, very flexible cable is UL-listed
Rated MTW/THW/AWM, 60 volt, sunlight resistant, direct burial, 105 degrees C
Assembled in the USA

AWG 2/0 Red Battery Interconnect Cable - 12 Inches. Why use larger cable? Very high current flows in the cables that connect an inverter to the batteries, even in a Low-Voltage power system. Household appliances can draw over 100 amps and motors may draw up to 500 amps. Larger cables allow the inverter to draw the current needed to support a large load. Use these cables between individual battery cells or between battery banks. Use 2/0 cables for 175-amp and 200-amp fuses. Circuits protected by 250-amp breakers or 400-amp fuses should use 4/0 cables. Cables are marked in red heat-shrink tubing for positive and white on black heat-shrink for negative. Features of the 12" Cable Plated Copper Lugs: These UL-listed lugs are made from tin-plated copper tubing with 3/8" holes, soldered or crimped to a stranded cable. Heat-Shrink Tubing: This tubing insulates the copper lugs and compression terminals. Tubing shrinks and glue inside melts when heated, sealing wires against corrosion and moisture. UL-Listed Battery Cable: This fine-stranded, very flexible cable is UL-listed for use as battery cable. It is rated MTW/THW/AWM, 60 Volt, sunlight resistant, direct burial, 105 degrees C. Available in red or black. Also known as: 052-05121-R, Specifications Brand: BIAF, Color: Red, Length: 12".

BIC-20AWGRED12
6 AWG 2/0 Black Battery Interconnect Copper Cable 3/8 w/ Lugs Battery Banks, Off Grid, Solar Power, Backup Grid, RV, SLA AGM Deep Cycle, Golf Cart, Emergency Systems DURABLE ASSEMBLED IN THE USA
