GM Open Element IAT Sensor with Uncrimped Connector by DIYAutoTune

Wiring Harnesses

Recommended 'Fast-Response' Intake Air Temp Sensor (IAT) for use on forced induction vehicles
Proper GM-style sensors for use with the MegaSquirt line of ECUs
Comes with the weatherproof connector and two crimp pins

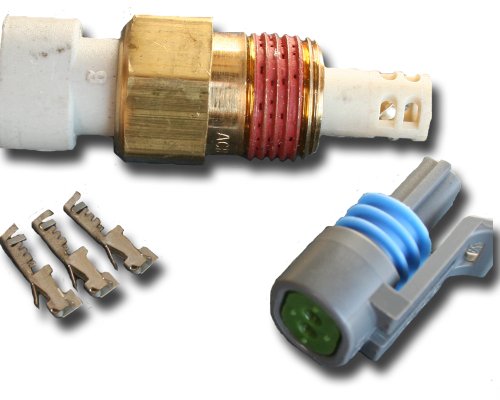

GM Open Element IAT Sensor with Connector

Recommended 'Fast-Response' Intake Air Temp Sensor (IAT) for use on forced induction vehicles. These are the proper GM-style sensors for use with the MegaSquirt line of ECUs and come with the weatherproof connector and two crimp pins.

If you need to calibrate your MS for this sensor, here's the calibration data we use for them for a three point curve.

Temperature Ohms

48 degrees F 7000

87 degrees F 1930

146 degrees F 560
