DIYAutoTune

CLTIATwConn

GM Closed Element CLT or IAT Sensor with Uncrimped Connector DIYAutoTune

Wiring Harnesses

Suitable for use as a Coolant Temperature Sensor (CLT) on all vehicles
Or as an Intake Air Temp Sensor (IAT) on naturally aspirated vehicles
Proper GM-style sensors for use with the MegaSquirt line of ECUs
Come with the weatherproof connector and two crimp pins

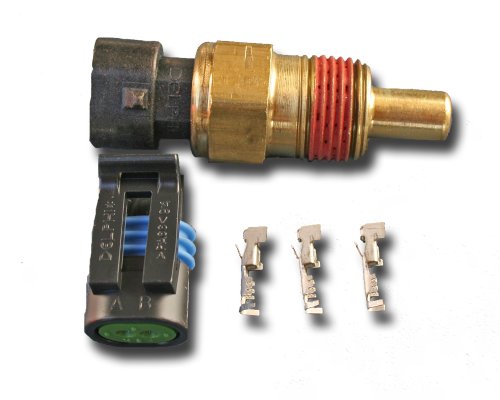

GM Closed Element CLT / IAT Sensor and Connector

Suitable for use as a Coolant Temperature Sensor (CLT) on all vehicles, or as an Intake Air Temp Sensor (IAT) on naturally aspirated vehicles. These are the proper GM-style sensors for use with the MegaSquirt line of ECUs and come with the weatherproof connector and two crimp pins.

Threads are 3/8 NPT

If you need to calibrate your MS for this sensor, here's the calibration data we use for them for a three point curve.

Temperature Ohms

48 degrees F 7000

87 degrees F 1930

146 degrees F 560
