Temco

CN0244

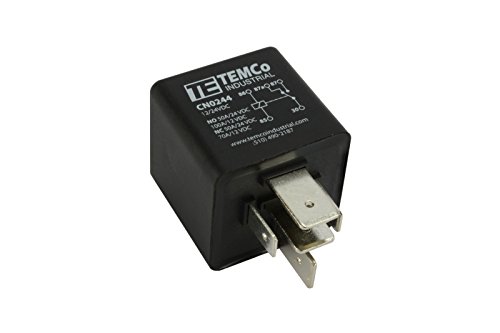

TEMCo INDUSTRIAL 12 V 100 / 70 Amp Bosch Style S Relay SPDT Automotive A

Relays

Contact Rating: NO - 100A @ 12VDC, 50A @ 24VDC, NC - 70A @ 12VDC, 50A @ 24 VDC, Coil Voltage: 12VDC
Pickup Voltage: 70%or less / Release Voltage: 10% or more / Coil Power: 2.9 Watts / Insulation Resistance: 100 Mohm
Dielectric Strength: Between open contacts - 1500 VAC, Between coil & contact - 2500 VAC
Mechanical Cycle Life: 1 x 10^5 / Electrical Cycle Life: 1 x 10^7 / Temperature Range: ~40 to +85 deg C
2 Year Warranty from an American name. NON-GENERIC.

Contact Rating: NO - 100A @ 12VDC, 50A @ 24VDC, NC - 70A @ 12VDC, 50A @ 24VDC

Contact Resistance: 50 mOhm

Coil Voltage: 12 VDC

Pickup Voltage: Less than or equal to 70%

Release Voltage: More than or equal to 10%

Coil Power: 2.9 Watts

Insulation Resistance: 100 MOhm

Dielectric Strength: Between open contacts - 1500 VAC, Between coil & contact - 2500 VAC

Mechanical Cycle Life: 1 x 10^5

Electrical Cycle Life: 1 x 10^7

Temperature Range: ~40 to +85 deg C

Weight: 60 g

Tab size: 0.25" (Coil), 0.37" (Contact)

Warranty: 2 Years

Continuous duty rated.
