American Volt

AV-2212

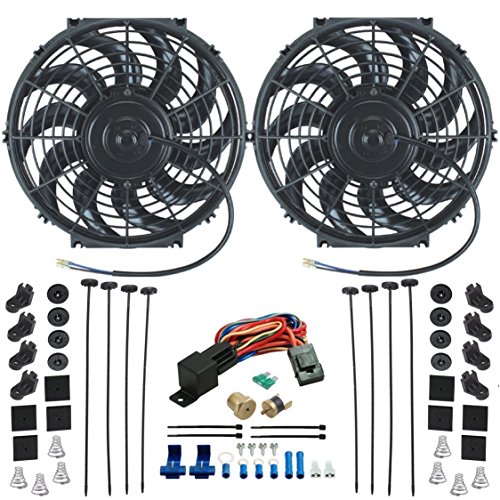

American Volt Dual Performance 12 Inch Electric Cooling Fans & 3/8 Thread-in Thermostat Kit (160'F Turn On/145'F Turn Off)

Fans

12 inch curved blade 12 volt electric radiator cooling fans.
High Performance 80 watt motors will keep your engine cool.
Kit includes thermostat switch and fan mounting kit.
Thermostat has preset turn-on and turn-off temperatures.
3/8" NPT thread-in brass temperature probe.

Electric Fan: Dual 12 inch reversible 12 volt electric cooling fans. Powerful 80 watt motors will keep your engine cool. Configured as air pullers out of the box. Blade and wiring can be reversed to make the fans air pushers. For radiators, oil coolers, transmission coolers, condensers and more. Includes mounting feet attachments and tie strap kits. Specs Per Fan: Blade Size - 12 Inch Blade Type - Curved Motor Size - 80 Watts CFM Rating - 1400 RPM Rating Amp Draw - 2000 - 10 Amps Material - Plastic Shroud/Steel Motor Dimensions - 12.5" x 11.75" x 2.5" thickness at center x 2.5" thickness at edge Thermostat Kit: Universal fit for any automotive vehicle. Designed to activate up to (2) 12 volt fans. Water jacket 3/8" NPT thread-in probe. Probe typically threads into radiator, water outlet or manifold. Maximum 25 amp continuous draw. AC/Manual override circuit. Installation instructions. Kit Includes: (1) - Thermostat Switch (1) - 3/8" NPT Thread-in Probe (1) - Wiring Harness (1) - 60 Amp Relay (1) - 30 Amp Fuse (1) - Large Ring Terminal (3) - Small Ring Terminals (2) - Butt Connectors (4) - 4" Wire Ties (2) - Female Connectors (4) - Sheet Metal Screws (2) - Wire Tap Connectors
