Auto Dynasty
AD-ALU-FT-T4-ALU-BK+ACC+FPR-SSS-BK

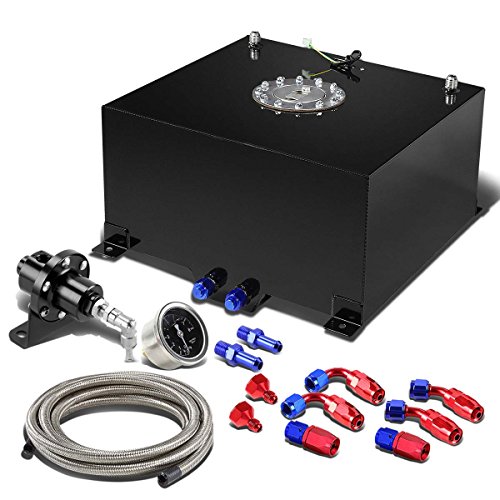

10-Gallon Black Gas Tank Silver Cap+12 Fuel Line+Fittings+Black Fuel Pressure Regulator
Fuel Tanks
Tank measures: 16.5" (L) x 16.5" (W) x 9" (H) / Mounting Tabs Measure: 18" (L) x 14-1/4" (W) Center to Center
Dual -10 Outlets / Dual -10 Vent Outlets (Top Of Cell)
Quick Release Fuel Cap / Includes Anti-Slosh Foam
Fuel Pressure Regulator - Adjustable from 0 psi to 160 Maximum Fuel Pump Capacity / Readings Range from 0-8 kg/cm / Oil-Filled Design Gauge / Adjustable with 1:1 Ratio
Fitting Kit - 12" Long Nylon Braided 6AN Fuel Line / 90 Degree & 45 Degree & Straight 6AN Fitting Adapter / 6AN to 10AN Fuel Tank Fitting Adapter
Fuel Tank:
The OEM fuel tank equipped on every vehicle is made to last the life of the vehicle and for everyday use. However, for racing purposes, it is overly large and heavy. That is where aluminum fuel cells/tanks come in. They are smaller, mountable in different locations and It is filled with an open-cell foam core to prevent explosion of vapor in the empty portion of the tank and to minimize sloshing of fuel during competition that may unbalance the vehicle or cause inadequate fuel delivery to the motor (fuel starvation).
Fuel Tank Fitting Kit:
For ease of installation on aluminum racing fuel cells we have put together our braided fuel line kit to adapt to your existing fuel system. The braided cover greatly increases the resistance of the hose to internal pressure and retains it form. It includes a 10an to 6an adapter fitting to run 3/8" feed and return lines for your fuel system.
Fuel Pressure Regulator:
Most modern fuel injected vehicles run a fuel pump in the tank and run much more fuel than it is needed to the fuel rail. A regulator keeps a certain amount of fuel pressure in the rail and then sends the rest back to the tank. However, tuners upgrade the air intake system as well as the exhaust system and often neglect that more fuel is needed to make those mods perform at their full potential. This Fuel Pressure Regulator is adjustable so you can tune the fuel pressure to your needs.
Package Included:
