WerFamily

3ET1DNG

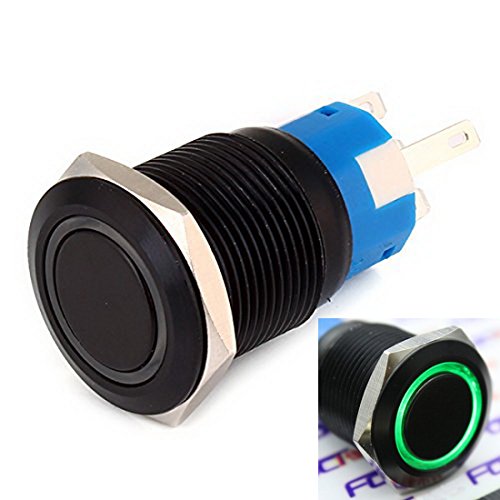

WerFamily Angel Eye Green LED 19mm Waterproof Black Shell Aluminum Alloy Self-locking Latching Push Button Switch 1NO 1NC

EAN: 0710185900599

UPC: 710185900599

Switches

Latching switch: Push it, ON; Push it again, OFF. 100% Brand new and high quality, mechanical life for 500,000 cycles. Degree of protection: IP67, IK10
Mounting hole size: 19mm; Head Diameter: 22mm; Head shape: Flat; Enclosure material: Aluminum Alloy
Switch rating: 5A/250V AC; LED rating: 15mA, AC/DC 12V; The switch and LED are separated, LED can be on all the time or only on when switch is on,depending on how you wire it.
Widely used in for various additional electric equipment, relay, inside & outside the car(Such as critical lights, chassis lamp, fog lamps, dome light) or any circuit controls.
E-packet post from China (7~15 Days to US), comes with tracking number.

Introduction:
100% Brand New and High Quality. It is a perfect choice if you are in need of a heavy duty push button! This switch is a very tough, small, panel-mount Latching switch with an illuminated LED. It can be used for basic On/Off functions perfectly. The switch is rated up to 5A and 250VAC while the LED is rated for 3-12V.

Latching switch
The Latching switch will remain on once it is pressed and stay on until it is pressed again.

Widely Use
Widely used in various additional electric equipment, relay, inside & outside the car(Such as critical lights, foglight, dome light) or any circuit controls -- any application you can think of!

Specification:
- Tail configuration: Connection terminal(2.8 X 0.5)
- Switch Rating: 5A/250VAC
- Contact resistance: ≤50mΩ
- Insulation resistance: ≥1000mΩ
- Dielectric intensity: 2000VAC
- Operation Temperature: -20℃ ~ +55℃
- Mechanical life: 500,000 cycles
- Electrical life: 50,000 cycles
- Panel thickness: 1 - 10mm
- Nut torque: 5 - 14Nm
- Operation pressure: About 3 - 5N
- Operation stroke: About 2.5mm
- Protection level: IP67, IK10
- Mounting Cut Hole: 19mm
- Head Diameter: 22mm
- Operation Type: Latching
- Switch Contact: 1NO 1NC
- Head Shape: Flat
- LED Rating: 15mA, AC/DC 12V
- LED Pattern: Angel Eye
- LED Color: Green
- Contact Material: Silver alloy
- Button Material: Aluminum Alloy

Packing Include: 1 x push button switch

Note:
- The switch come with a rubber O-ring which makes it splash resistant but it can NOT be submerged underwater.
- Don't let current go above 5A, or the switch will get warm and to be burned out.
