Rupse

S431

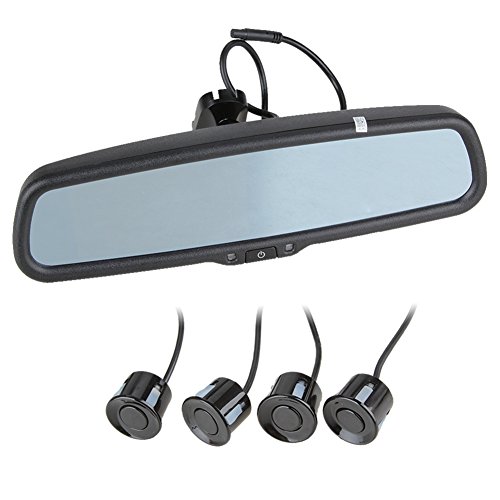

Car Monitor+Reverse Camera+Parking Sensor Rearview Mirror Auto-Adjust Night Version 4 Sensor Backup Packing

EAN: 0886085397224

UPC: 886085397224

Parking Brake Systems

Can be connected with camera and parking sensors 2,4sensors for option
Step-up buzzer alarm human voice alarm for option
Video input: two way video for option
Display the distance on the screen
the display is clip on the original mirror Antiglare glass

Specifications:
Display:4.3inch TFT LCD sreen.
Aspect ratio:16:9
Resolution:480(H)*234 (V)
bluetooth function for option
Rated voltage: DC 12V
Operating range: DC 9V- 18V
Display distance : 0.3 - 1.8m
Ultrasonic frequency: 40KHZ

Camera Specification:
Power Supply :DC8V-12V
Resolution:480TV line
Effective Pixels 640x 480
Waterproof of grade:IP67
Automatic white balance functions.
Wide angle:170degree(Diagonal).
Water-proof,shock-proof and anti-jamming functions.
Mininum illumination:0.3Lux
S/N ratio:>48dB
Current consumption:<=120mA
Operation Temperature:-30 to 65 degree
Storage Temperatue:-35 to 70 degree
Pin nailded installation, hiding mounting at upper sider of license-plate.

Packing
1.Display
2. Control unit
3. Sensors
4.Power Cable
5. Drill Bit
6.Manual

After installation Test
Use the following to test and verify the operation of backup system
Warning : Do not stand behind a moving vehicle death or injury could occur.Prior to
testing, set the parking brake on, igniting key on( do not start), step foot on brake and
shifting vehicle into reverse. Ensure that the engine is not running while proceeding
with the folloeing tests.
Test the system operation with a piece of wood( 60*30*1cm) or other object(not to small)
after the installation. Start the wood more than 1m away from vehicle, Then move the wood
closer the vehicle and ensure that the buzzer, LED, and distance indicators display correctly.

　
