BAM MFG

R-816C-Tour

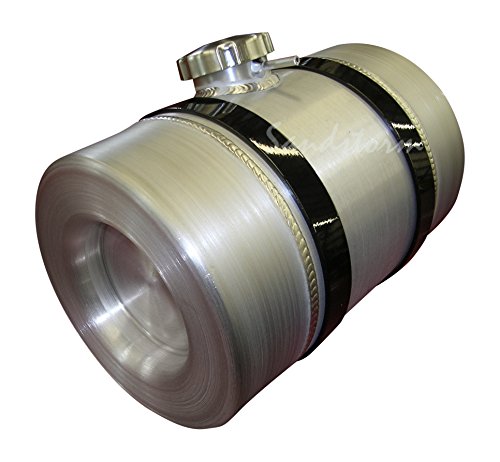

Sandstorm Motorcycle Auxiliary Fuel Tour Tanks 8x16 Center Spun Aluminum Gas Tank - 3.75 Gallons Baffle & Vent Tube- -

Gas Caps

Highest Quality TIG Welds
1/4 NPT Bottom Outlet included
Internal Baffle - Prevents sloshing and sudden weight transfer
Non-vented gas cap with 1/4 inch vent tube in filler neck for vent line
Two Powder coated brackets included. Our Tanks are 100% American made!

8x16 Center Fill Spun Aluminum Gas Tanks - Approx 3.75 Gallons New Style Spun Aluminum Gas Tanks recently added to our product line! 3.75 Gallon - 8x16 Spun Aluminum Gas Tank ◾Internal Baffle - Prevents sloshing and sudden weight transfer ◾Non-vented gas cap with 1/4 inch vent tube in filler neck for vent line ◾1/4 inch NPT outlet - located bottom center ◾Set of Powder coated brackets These tanks hold more fuel than our standard style Spun Aluminum gas tanks, because of their unique end cap design Installation Tips: The most difficult part of installing your tank is deciding where and how to mount the tank. If you have a rear rack it helps a lot. The brackets each have 2 holes about 3/8-inch diameter, use 5/16 bolts, and about 4.75-inches apart. Once you have decided where to mount the tank you must make sure you mount it securely. There are so many different bikes and different ways to mount a BAM Tour Tank that it is impossible to cover them. If you need help contact a motorcycle shop in your area for advice and/or parts. On a carbed bike it is pretty easy to tie into your fuel system with a T-Fitting by splicing into your bike's fuel line between the main tank and carb(s). Fuel injected bikes are best served by taking your main tank to a pro weld shop and have them weld a 1/4NPT threaded bung in the bottom of your tank. Then thread in a brass fitting into the bung and hook the BAM Tour Tank fuel line to that fitting. The BAM Tour Tank gas will go into the main tank and use the factory fuel pump. Also note that BAM Tour Tanks have a Vent tube in the filler neck. You need to connect a fuel hose to the Vent tube and connect the other end of the hose to a catch tank.
