UHD59INX-K0

Currie Enterprises UHD59INX-K0, 9 Ford 59 Street Rod Rear End with 10 Drum Brakes, Brake Lines, Parking Brake Cables, Axles, and Bearings, Hot Rod, Ratrod, Restoration, SWS

Differential Kits

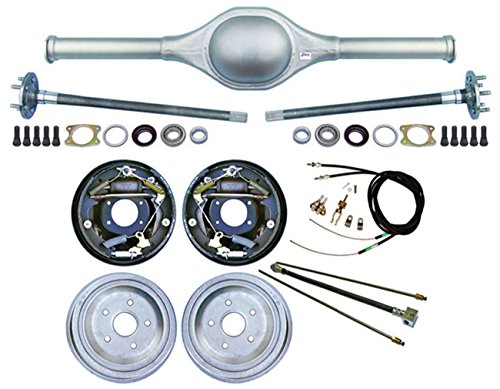

Currie Enterprises 9" Ford 59" Rear End with 31 Spline Axles with Currie 10" Drum Brake Kit, Parking Brake Cable Kit, and Brake Line Kit (Part #UHD59INX-K0). These are ideal for Street Rods, Hot Rods, Rat Rods, Restorations, and numerous other projects. ***This set includes drums that have a 5 x 4 3/4" bolt pattern. If you need the 5 x 4 1/2", just let us know and we can make that substitution for you.***
Includes: Currie 9-Plus Round-Back Rear End with 31 Spline Axles (Currie #CE-UHD59INX) 9-Plus roundback heavy duty housing 31 Spline performance axle package 59" Overall width: 59" is measured outside-of-axle-flange to outside-of-axle-flange, in other words, where the wheel bolts on to where the wheel bolts on We also have these rear ends available in lengths of 55", 56", 57", 58", 60", and 61" Housing is built with the pinion centered Steel 3" diameter tubes
These are 9" Ford center sections, so they do require a 9" Ford 3rd Member (sometimes referred to as a Chunk); if you don't currently have one, we do offer them in several ratios
The Axle flanges on this rear end are the Big Bearing Ford (New Style), also known as "Torino", which fit the Currie drums perfectly.
Currie 10" Hydraulic Drum Brake Kit (Currie Part #CE-6005B475): Currie brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

Includes:

Currie 9-Plus Round-Back Rear End with 31 Spline Axles (Currie #CE-UHD59INX)

• 9-Plus roundback heavy duty housing

• 31 Spline performance axle package

• 59" Overall width

• Housing is built with the pinion centered

• Steel 3" diameter tubes

Axles include

• Both 5 x 4 1/2" and 5 x 4 3/4" wheel bolt patterns

• Includes one set of 7/16" studs and one set of 1/2" studs

• 1/4" Thick heavy-duty bearing retainer plates

• Tapered Timken style wheel bearings pressed on

• The Axle flanges on this rear end are the Big Bearing Ford (New Style), also known as "Torino", which fit the Currie drums perfectly

Currie 10" Hydraulic Drum Brake Kit (Currie Part #CE-6005B475)

Brake Kit includes

• 10" Hydraulic Drums

• 2 1/2" x 10"

• 2.80" Center Register Hole

• Includes Cable Operated Parking Brake Mechanisms

Parking Brake Cable Kit

• Connects to the Currie Parking Brake Assemblies, then comes together to join the stock cable behind the transmission

Hard Line Kit

• Steel hard brake line tubing to connect the Currie drums to the included rubber hose

• Rubber hose connects those hard lines to the line on the frame

Note:Tubing bending is generally necessary for the installation of these lines
