Southwest Speed

GMG7887X-K3

NEW CURRIE 78-87 GM G-BODY REAR END WITH DRILLED DISC BRAKES, BRAKE LINES, PARKING BRAKE CABLES, AXLES, & BEARINGS, 1978 - 1987 CHEVY EL CAMINO, MALIBU, MONTE CARLO, BUICK REGAL, OLDS CUTLASS, 442, PONTIAC GRAND PRIX

Differential Assembly Kits

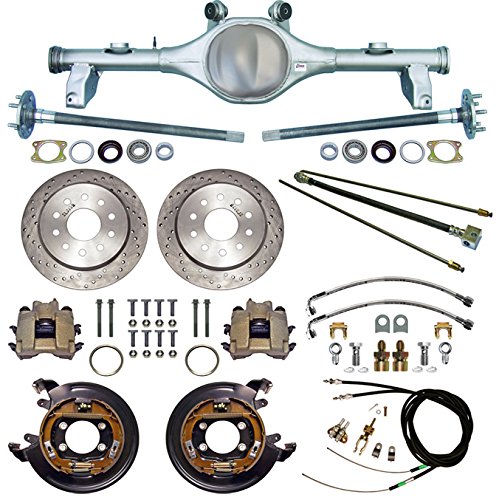

Currie Enterprises Rear End with 31 Spline Axles with Currie Drilled Disc Brake Kit, Parking Brake Cable Kit, and Brake Line Kit for the applications below (Part #GMG7887X-K3). Currie Crate Rear Ends are designed to be a bolt-in upgrade.
Fits: ** Chevrolet:1978-1987 El Camino, Malibu, Monte Carlo, and Station Wagon ** Buick:1978-1987 Grand National and Regal** GMC:1978-1987 Caballero ** Oldsmobile:1978-1987 Cutlass, Cutlass Salon, 4-4-2, and Station Wagon ** Pontiac:1978-1987 Grand Prix and Station Wagon
Built to the stock overall width (58") and pinion offset specs 58" is measured outside-of-axle-flange to outside-of-axle-flange, in other words, where the wheel bolts on to where the wheel bolts on.
These are 9" Ford center sections, so they do require a 9" Ford 3rd Member (sometimes referred to as a Chunk); if you don't currently have one, we do offer them in several ratios
The Axle flanges on this rear end are the Big Bearing Ford (New Style), also known as "Torino", which fit the Wilwood brakes perfectly. These Brake kits require at least 15" diameter wheels.

Includes:

Currie 9-Plus Notch-Back Rear End with 31 Spline Axles (Currie #CE-GMG7887X)

9-Plus notchback heavy duty housing

31 Spline performance axle package

All stock suspension brackets are installed in the stock location for an easy bolt in installation, and urethane upper control arm bushings are installed in the upper control arm housing brackets.

Housing includes all 3rd member studs installed

Axles include

Stock 5 x 4 3/4" wheel bolt pattern

12mm Wheel studs installed

1/4" Thick heavy-duty bearing retainer plates

Tapered Timken style wheel bearings pressed on

Currie 11" Drilled Disc Brake Kit (Currie Part #CE-6012D6)

Brake Kit includes

Cross-Drilled, 0.50" Thick x 11.00" O.D. Solid Rotors with Hats

Featuring both 5 x 4 1/2" and 5 x 4 3/4" bolt patterns

Single Piston Brake Calipers with Pads

Backing Plate / Caliper Mounting Bracket Plates with Drum-Style Parking Brake Assemblies installed

Necessary bolts, nuts, and registers to install the braking system on both rear wheels

Parking Brake Cable Kit

Connects to the Currie Parking Brake Assemblies, then comes together to join the stock cable behind the transmission

Flexline Kit

Steel braided brake lines, banjo fittings & bolts, and chassis fittings to connect the calipers to the hard lines

Also includes weld-on line tabs to install on your rear end

Hard Line Kit

Steel hard brake line tubing to connect the chassis fittings to the included rubber hose

Rubber hose connects those hard lines to the line on the frame

Note:Tubing bending is generally necessary for the installation of these lines
