CUR-FDM6466X-K3

NEW CURRIE 64-66 MUSTANG REAR END WITH DRILLED DISC BRAKES, BRAKE LINES, PARKING BRAKE CABLES, AXLES, & BEARINGS, 1964, 1965, 1966 MUSTANG, RANCHERO, COMET

Differential Assembly Kits

Currie Enterprises Rear End with 31 Spline Axles with Currie Drilled Disc Brake Kit, Parking Brake Cable Kit, and Brake Line Kit for the applications below (Part #FDM6466X-K3). Currie Crate Rear Ends are designed to be a bolt-in upgrade.
Fits: 1964-1966 Ford Mustang, 1964-1966 Ford Ranchero, 1964-1966 Mercury Comet
Built to the stock overall width (57 3/8") and pinion offset specs 57 3/8" is measured outside-of-axle-flange to outside-of-axle-flange, in other words, where the wheel bolts on to where the wheel bolts on. The Axle flanges on this rear end are the Big Bearing Ford (New Style), also known as "Torino", which fit the Currie brakes perfectly.
Currie brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications. These Brake kits require at least 15" diameter wheels.
Sold by Southwest Speed. SWS - SKU # CUR-FDM6466X-K3

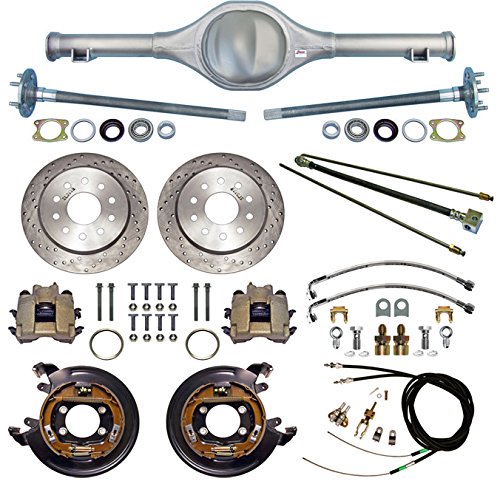

Includes

Currie 9-Plus Notch-Back Rear End with 31 Spline Axles (Currie #CE-FDM6466X)
9-Plus notchback heavy duty housing
31 Spline performance axle package
Built to the stock overall width (57 3/8") and pinion offset specs
Heavy-duty 2 1/4" wide leaf spring pads are installed in the stock location for an easy bolt-in install.
Housing includes all 3rd member studs installed

Axles include
Stock 5 x 4 1/2" wheel bolt pattern
Wheel studs installed
1/4" Thick heavy-duty bearing retainer plates
Tapered Timken style wheel bearings pressed on

Currie 11" Disc Brake Kit with Drilled Rotors (Currie Part #CE-6012D6)

Brake Kit includes
Cross-Drilled, 0.50" Thick x 11.00" O.D. Solid Rotors with Hats
Featuring both 5 x 4 1/2" and 5 x 4 3/4" bolt patterns
Single Piston Brake Calipers with Pads
Backing Plate / Caliper Mounting Bracket Plates with Drum-Style Parking Brake Assemblies installed
Necessary bolts, nuts, and registers to install the braking system on both rear wheels

Parking Brake Cable Kit
Connects to the Currie Parking Brake Assemblies, then comes together to join the stock cable behind the transmission

Flexline Kit
Steel braided brake lines, banjo fittings & bolts, and chassis fittings to connect the calipers to the hard lines
Also includes weld-on line tabs to install on your rear end

Hard Line Kit
Steel hard brake line tubing to connect the chassis fittings to the included rubber hose
Rubber hose connects those hard lines to the line on the frame
Note:Tubing bending is generally necessary for the installation of these lines
