AEM Electronics

30-6030

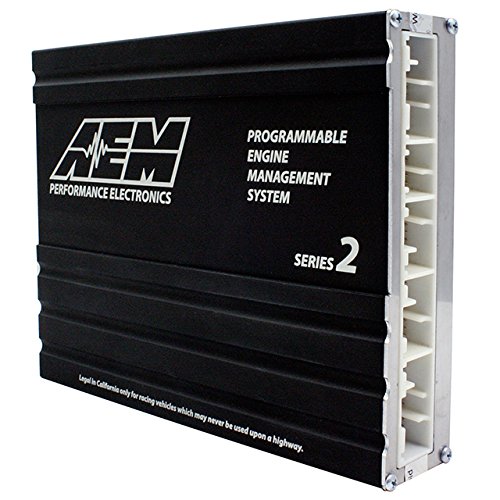

AEM Series 2 Plug and Play EMS Acura RSX L RSX 2.0L 1998ccL4 [K20A3] 02-06

EAN: 0684719989865

UPC: 684719989865

Engine Management Systems

Fitment: Acura RSX L RSX 2.0L 1998ccL4 [K20A3] 02-06
Coil Outputs: 4
Selectable direct drive or 0-5V Coil Output: Yes
Direct plug in, no jumper harness required: Yes
General purpose LS outputs: 11

AEMs Series 2 EMS is a complete engine control system that plugs into the factory harness and uses the factory sensors. This means you do not need to replace any parts of the harness or sensors, just plug the EMS into the harness and begin tuning! The Series 2 EMS allows you to control every aspect of your engine. From VTEC to rev limit, timing, adding different sized injectors, boost control, nitrous injection, even anti-lag and individual cylinder fuel and timing trims, the Series 2 EMS gives you total control from an easy to use interface. Injector Outputs: 10 Saturated

Note: Legal in California only for racing vehicles which may never be used upon a highway.

More Info:
-General purpose HS outputs: 4
-Individual cylinder ignition trims
-Individual cylinder fuel trims
-Trigger inputs (Ref/Sync): 4
-Analog voltage inputs: 14
-Configurable Analog/RTD/Thermister inputs: 4
-Switch inputs: 5
-Lambda inputs: 2x
-Knock sensors: 2
-User adjustable knock sensor center frequency
-USB comms
-RS232 comms
-Communication cables included
-Fully enabled editing/logging software included
-CAN bus equipped
-RS232 datastream output: 19 ch
-CAN datastream output: 32 ch
-Communicates with AIM Dash/Dataloggers
-Communicates with Racepak Dash/Dataloggers
-Internal data logging: 1 MB
-Maximum internal logging rate (per channel): 250 Hz
-PC logging
