Southwest Speed

CE-6012DGMFKIT

NEW CURRIE DISC BRAKE KIT WITH CABLE SET & BRAKE LINE SET, REAR PARKING BRAKE FOR GM F-BODY STAGGERED SHOCK CAMARO & FIREBIRD, BIG FORD NEW STYLE AXLE FLANGES, 11 DRILLED ROTORS, CALIPERS, 5 X 4 1/2 & 5 X 4 3/4 BOLT PATTERNS, SOUTHWEST SPEED

Brake Kits

Currie Explorer Rear Parking Brake, Bolt-On 11" Disc Brake Kit with Parking Brake Cable Set, Flexline Set, and Hard Line Set for Staggered Shock Applications (Part #CE-6012DGMF Kit) for Both Rear Wheels. Features Drilled Rotors.
Fits: Staggered shock applications with Big Bearing Ford New Style (also known as Torino) Rear Ends with a 3.562" x 2.000" Mounting Pattern on the Axle Flange & with a 2.50" Flange Offset (see diagrams below) Staggered shocks were common on 1967-1969 GM F-Bodies (Chevy Camaro and Pontiac Firebird) with leaf springs
Currie brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.
These brake kits require at least 15" diameter wheels.
Find the full list of components for this brake kit in the listing description below.

Currie Explorer Rear Parking Brake, Bolt-On 11" Disc Brake Kit with Parking Brake Cable Set, Flexline Set, and Hard Line Set for Staggered Shock Applications (Part #CE-6012DGMF Kit) for Both Rear Wheels.

Features Drilled Rotors

Fits:

* Staggered shock applications with Big Bearing Ford New Style (also known as Torino) Rear Ends with a 3.562" x 2.000" Mounting Pattern on the Axle Flange & with a 2.50" Flange Offset

* Staggered shocks were common on 1967-1969 GM F-Bodies (Chevy Camaro and Pontiac Firebird) with leaf springs

Currie brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

These brake kits require at least 15" diameter wheels.

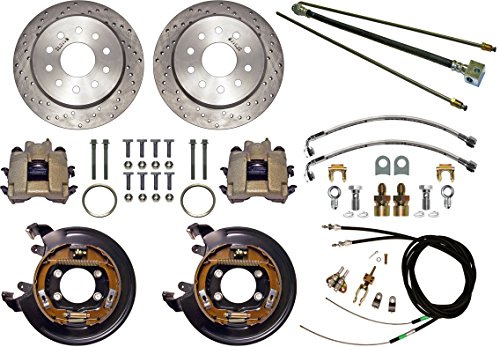

Kit includes parts for both rear wheels:
* Cross Drilled 0.50" Thick x 11.00" O.D. Solid Rotors with Hats
* Feature both 5 x 4 1/2" and 5 x 4 3/4" bolt patterns
* Single Piston Brake Calipers with Pads
* Backing Plate / Caliper Mounting Bracket Plates with Drum-Style Parking Brake Assemblies installed
* Necessary bolts, nuts, and registers to install the braking system on both rear wheels

Parking Brake Cable Kit:
* Connects to the Currie Parking Brake Assemblies, then comes together to join the stock cable behind the transmission

Flexline Kit:
* Steel braided brake lines, banjo fittings & bolts, and chassis fittings to connect the calipers to the hard lines
* Also includes weld-on line tabs to install on your rear end

Hard Line Kit:
* Steel hard brake line tubing to connect the chassis fittings to the included rubber hose
* Rubber hose connects those hard lines to the lines on the frame
