National-Spencer INC

936G

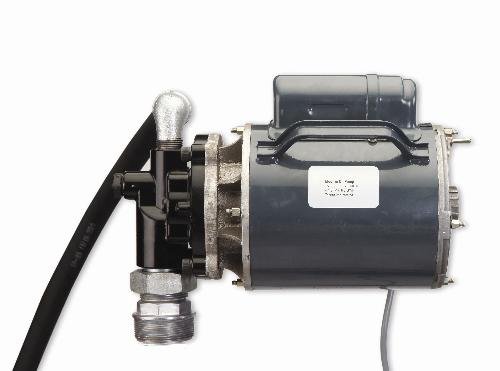

National Spencer 115-volt A/c Electric Oil Pump 936g

EAN: 0117434522203

UPC: 117434522203

Oil Pumps

Heavy Duty Oil pump designed specifically to transfer bulk oils, hydraulic fluid, antifreeze or antifreeze mixes
Non corroding Aluminum Die cast pump body
A high horsepower to flow ratio assures adequate power to pump viscous fluids at low temperatures
Self priming, positive displacement design
Sintered Powder Metal Gears

Product Brief Heavy Duty Oil pump designed specifically to transfer bulk oils, hydraulic fluid, antifreeze or antifreeze mixes Non corroding Aluminum Die cast pump body A high horsepower to flow ratio assures adequate power to pump viscous fluids at low temperatures Sintered Powder Metal Gears Self priming, positive displacement design Pump has an internal bypass valve to bypass flow, if the discharge pressure exceeds the bypass valve setting Built-In 2" Bung Adaptor for mounting on drums/ tanks Air Cooled Motor with Thermal Protection Can be used to transfer used oil with a screen fitted onto the Suction Tube UL listed frame & motor components WETTED COMPONENTS Aluminum, Steel, Cast Iron, Nylon, NBR, Zinc, Polypropylene, PVC RECOMMENDED USE Oils, Synthetic Oils, Antifreeze, Used Oil, Hydraulic Fluids, Cutting Oils, Oil based Herbicides, Non Flammable Oil Based Solvents, Liquid Soap etc. Pump Specifications Model 936G Description Heavy Duty 115V AC Flow 4 GPM (15.10 LPM) Motor 1/2 HP 115V AC, 60 Hz. Amp 9 Amp RPM 1720 Construction - Pump Housing Aluminum Die Cast Mechanism Gear Pump Gear Material Sintered Powder Metal Internal Bypass Valve Yes Suction Pipe 34" long PVC Hose 3/4" x 8' Bung Adapter 2" Threaded Inlet 1" NPT Outlet 3/4" NPT Dispensing Nozzle Ball Valve Power Cable 30" (762 mm) Air Cooled Yes Max. Viscosity of Oil SAE 90 Max. Working Pressure 65 PSI (4.5 BAR) Thermal Protection Yes
