aFe

46-20121

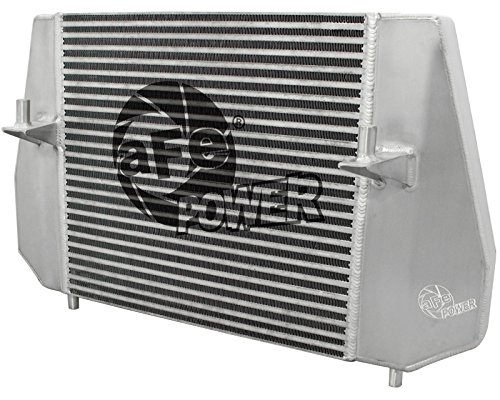

aFe BladeRunner Intercooler Ford F-150 ecoboost V6 3.5L TT 11-14

EAN: 0212808110731

UPC: 212808110731

Intercoolers

Fitment: Ford F-150 ecoboost V6 3.5L TT 11-14
Tig-Welded End Tanks
Multi-Directional Vanes technology (MDV) Technology
3 inch Bar and Plate Core Design
CNC Machined Bypass Flange:

The 3/16inch Tig-Welded end tanks and brackets offer superior strength, and durability while incorporating aFe multi-directional vanes technology.AFe also addressed the OE intercooler water condensation issue, by incorporating a CNC machined vent tube, which incorporates a brass 1/8inch NPT breather vent. For those wishing not to use this feature, a solid NPT plug is also included. The unique, BladeRunner end tanks are constructed out of 3/16'' TIG-Welded aluminum plates that incorporate four multi-directional vanes throughout the intercooler. The BladeRunner MDV technology is used to direct hot airflow through the entire intercooler core allowing for increased air flow and cooling capacity. The use of a 3inch Bar and Plate Core Design allows for greater airflow and increased heat dissipation over the much smaller tube and fin design used by the OEM. A CNC machined bypass flange allows the intercooler to be used on 2011-2014 models by either incorporating the Electronic Re-circulating Valve, or closing the port with the included block-off plate. The intercooler includes a 1/8inch NPT brass breather vent, which drains condensation from the intercooler. The port can also be plugged using the included 1/8inch NPT plug. This BladeRunner Intercooler uses dual 2.25inch billet aluminum inlets and a 3inch outlet for superior strength and durability. Flowing 20% better than the factory unit, the BladeRunner Intercooler performed above 95% efficiency, compared to the 88% efficiency of the factory intercooler. While tested on the field at an ambient temperature of 70 degrees Fahrenheit, the BladeRunner cooled outlet flow temperature to 77 degrees. Under the same conditions, the factory unit cooled outlet flow temperature to 91 degrees. The BladeRunner Intercooler is pressure test rated at 200psi which is perfect for high boost applications. Don't waste your time and money on modified factory intercoolers. Invest in the aFe BladeRunner intercooler.
