Wilwood

140-7763 / 220-6746

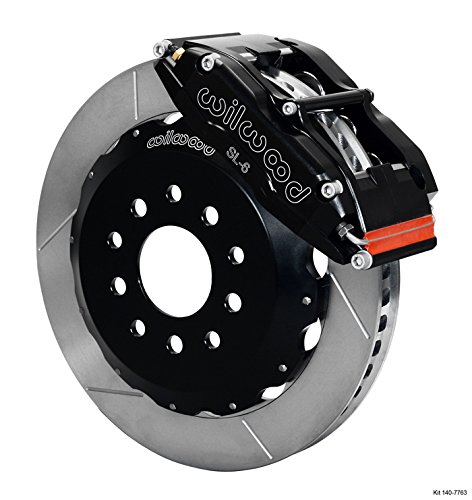

Wilwood 140-7763 1998-2002 F-Body: Camaro / Firebird Front Brake kit - Billet Superlite 6R 6-Piston Calipers / 12.88 Slotted GT 48 Rotors + Braided Stainless Steel Flexlines

EAN: 0635040943774

UPC: 635040943774

Brake Kits

Billet Superlite 6R (SL6R) - Black 6-Piston Calipers: Race-ready braking performance
12.88" GT 48 Curved Vane Spec-37 rotors: Great for the street, but built to perform on the track
Wilwood BP-10 Brake Pads: Medium friction, smooth engagement, low abrasion on iron rotors
Bonus: 220-6746 Stainless Steel Flexlines for Improved Durability, Safety and Pedal Feel!
Fits all 1998-2003 F-body: Camaro / SS / Firebird / WS6 / Trans Am

overview

Billet SL6R kits are application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and improved style.

BSL6R Calipers:

The Billet Superlite 6R (BSL6R) is strongest caliper in the Superlite series. Calipers in this group feature a full width reinforced rib outboard body for maximum strength when caliper to hub or caliper to wheel clearance is not an issue.

A unique six-piston differential bore configuration provides balanced loading for even pad wear in sustained high heat environments. the SL6R uses single piece stainless steel pistons, full length stiffening ribs and a reinforced radial transition from the piston bore housings to the closed end bridges has produced the strongest SL caliper bodies ever built, reducing deflection under load. Additional strength and resistance to deflection comes from the four high-strength steel end bridge bolts. A fifth center bridge bolt provides even more overall strength and easy access to the pads without the need to remove the caliper from the mount.

Rotors:

Wilwood's GT 48 Curved Vane Spec-37 rotors are manufactured from iron alloy developed to withstand extremes with the highest possible degree of resistance against, warping, cracking, and wear. These rotors provide the highest cooling capacity and longest service life for extreme braking short tracks and road course competition.

BP-10 Pads:

Medium friction, smooth engagement, low abrasion on iron rotors. Flat torque curve. Low to medium wear rate, increases as temperature increases. High performance street / strip, drag race, and track day categories using vented iron rotors.
