Southwest Speed

205-2093

Southwest Speed Disc Brake Kit, Front, 67 - 69 Chevy Camaro, Pontiac Firebird, 2 Drop Spindles, Rotors, Red Wilwood Calipers, High Performance Brake Kit, 1967-1969 Camaro, Firebird, Part # 205-2093

Brake Kits

Southwest Speed 2" Drop Spindle & 10 1/2" Disc Brake Kit with Wilwood Calipers (Part #205-2093) for Both Front Wheels. Features Powder-Coated Red Wilwood Calipers. Fits: Chevrolet: 1967-1969 Camaro Pontiac: 1967-1969 Firebird.
Southwest Speed spindle and brake kits consist of precision engineered components designed to provide superior brake system performance & custom appeal. SWS Drop Spindles provide a full 2" drop, while not changing the vehicle's steering geometry. They will accept the stock ball joints.
These 1-piece rotor and hat kits deliver the cost effective combination for braking power and style for American muscle cars and vintage rods. They are fully compatible with OE master cylinder output. They provide solid brake capacity and complimentary style with wheel, tire, and suspension upgrades on all types of daily drivers, race vehicles, and ultra-styled show machines.
Wilwood's D154 1-Piston Calipers are a lightweight, high-strength, extreme-duty alternative to the OE-style cast iron calipers. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put an end to the rust, bore pitting, and seal failures that plague the OE calipers. D154 calipers provide low-maintenance performance and a huge weight savings with high temperature reliability for the street and track. The 2.50" piston in each caliper provides 4.90 square inches of piston area per caliper. The kit contains hardened slide pins and Wilwood BP-10 high friction pads
This High Performance Brake Kit Is Produced By Southwest Speed. The Brake Kit Fits The Following Vehicles: 69 Chevrolet Camaro, 69 Pontiac Firebird, Chevrolet Camaro, 68 Pontiac Firebird, 67 Chevrolet Camaro, 67 Pontiac Firebird

Southwest Speed 2" Drop Spindle & 10 1/2" Disc Brake Kit with Wilwood Calipers (Part #205-2093) for Both Front Wheels.

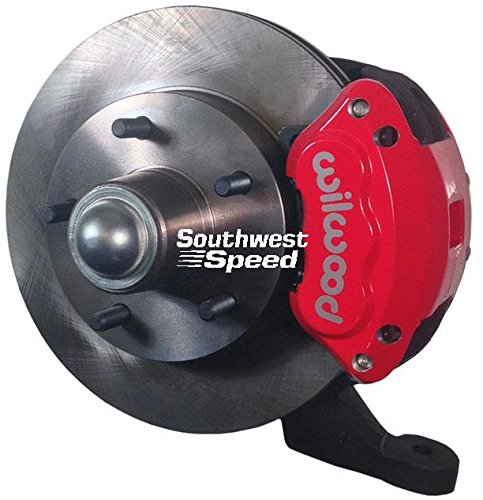

Only one side pictured above. See the list and picture below for a detail of the parts included.

Features Powder-Coated Red Wilwood Calipers.

Brake Kit includes parts for both front wheels:

*1.00" Thick x 10.50" o.d. 1-piece rotors/hats
*5 x 4.75" Bolt pattern 7/16"
*2" Drop Spindles
*4140 steel construction
*Wilwood D154 1-piston forged aluminum calipers Red, 2.50" piston
*Wilwood BP-10 smart compound brake pads
*Caliper slide pin bolts with sleeves
*Steel braided brake line kit with fittings to connect to calipers and connect to stock hard lines
*Wheel bearings and races
*Seals, Washers, Nuts, Cotter Pins, & Dust Cap

Complete kit weighs approximately 90 lbs.
