Brian Tooley Racing

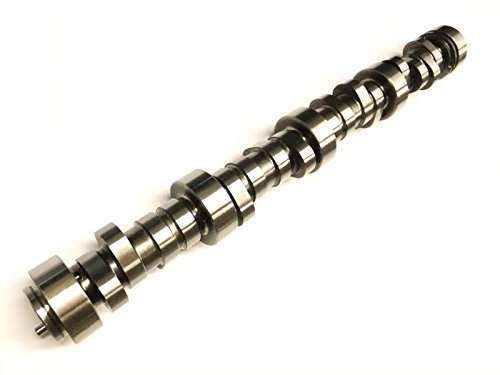

BTR LS7 Stg IV Cam

Brian Tooley Racing Naturally Aspirated LS7 Stage IV Camshaft

Camshafts

BTR LS7 Stg IV Cam 246/254 .652"/.630" 111+2
Valve Spring Upgrade Required
These Camshafts are Manufactured By Comp Cams To Our Specifications

This camshaft is very aggressive and should only be used on maximum effort combinations. This cam has made 600+ RWHP in a few setups, but attention to detail must be paid to attain those results. With 28 degrees of overlap it has a very aggressive idle, and makes great top end power at the sacrifice of some low end torque. Cam specs are 246/254 .652"/.630" 111+2 and comes a 3 bolt timing gear pattern. Our .660" Lift Platinum spring kit with titanium retainers work great with this camshaft.

Due to the longer pivot length and longer scroll of the LS7 rocker arms up to .660" lift can be used without valve tip damage. We recommend maximum open spring pressure of 430 lbs.
