newway

36 Volt our Meter Gauge Tri-color

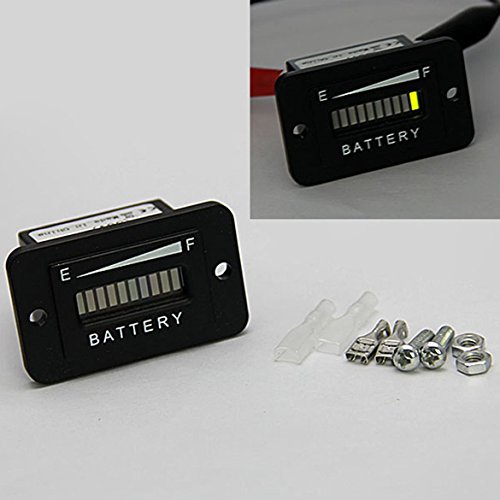

Newway® Rectangle 36 Volt Battery Indicator with Hour Meter Gauge Tri-color

EAN: 0638142947688

UPC: 638142947688

Hour Meter

Rectangle 36 Volt Battery Indicator with Hour Meter Gauge Tri-color
Works for 36V battery, used for truck, RV, Golf cart or any battery operated unit
Temp range: -40F ~ 185F
Connection: Pin+: Battery+, Pin-: Battery-. C-signal output for external use

Features:
Works for 36V battery, used for truck, RV, Golf cart or any battery operated unit
Temp range: -40F ~ 185F
Connection: Pin+: Battery+, Pin-: Battery-. C-signal output for external use
Operation:
Only when the battery is properly charged then the 10th LED (far right) will be lighted.
As battery's state of charge decreases, successive LED lights up, only one at a time.
When 2nd (from left) LED flashes, indicating "energy reserve". When both 1st and 2nd LED flash,indicating "empty", new battery is needed to replace old one.
Battery indicator memorized the battery state is full when leaving factory. When use with a new battery, it should be powered on for at least 2 minutes to indicate the real battery state.
Range indication: Green: 41~100%, Yellow: 21~40%, Red: 20% less.
Forklift trucks, Golf Carts, RV's, Boats, Scooters and electric vehicle. etc.
Dimensions: Cut-off: 1.5"x1", distance between holes: 1.75", depth: 1.5"
Package includes:
1x Battery Gauge
