Aims
PICOGLF40W12V230VS

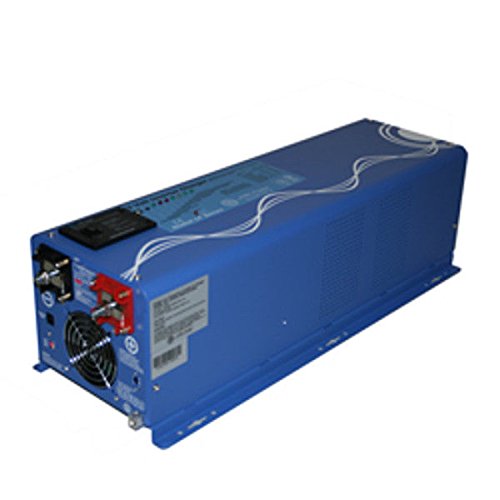

AIMS Power 4000 Watt 12 Volt Pure Sine Inverter Charger PICOGLF40W12V230VS
EAN: 0852669373755
UPC: 852669373755
Power Inverters
4000 watt low frequency inverter
12000 watt surge for 20 seconds 300% surge capability
120/240 Vac output Split Phase
Marine Coated and Protected
Multi Stage Smart charger 100 Amp
Features
- 4000 watt low frequency inverter
- 12000 watt surge for 20 seconds 300% surge capability
- 120/240 Vac output Split Phase
- Battery Priority Selector
- Terminal Block
- Marine Coated and Protected
- Multi Stage Smart charger 100 Amp
- remote panel available
- auto frequency
- 10msec typical transfer time
- optional 25W power save mode
- 7 battery type settings for charger
- Continuous Output Power: 4000 Watts
- Surge Rating: 12000 Watts (20 Seconds)
- Output 120/240 Vac - Split Phase 50 or 60hz
- Output Waveform: Pure Sine/Same as input (Bypass Mode)
- Nominal Efficiency: >88% (Peak)
- Line Mode Efficiency: >95%
- Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
- Typical Transfer Time: 10ms (Max)
- THD: < 10% DC
- Nominal Input Voltage: 12.0Vdc
- Minimum Start Voltage: 10.0Vdc
- Low Battery Alarm: 10.5Vdc-11.0Vdc
- Low battery Trip: 10.0Vdc-10.5Vdc
- High Voltage Alarm: 16.0Vdc
- Low battery Voltage Restart: 15.5Vdc
- Idle Consumption: <3.47 amps DC
- Power Saver Mode Idle Consumption: <0.53 amps DC
- Output voltage: Depends on battery Type
- Charger Rate: 100A
- Over Charge Protection Shutdown 15.7V
- Selectable Charge setting based on battery type
- Adjustable charge current off-20%-100%
- Four Stage Smart Charger
- 40 amp automatic transfer switch
- 10 ms (max)
