SPX

AB-1270

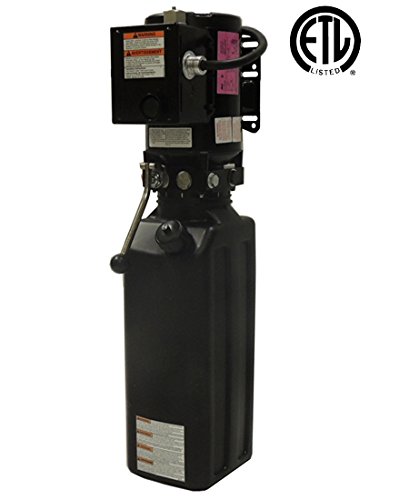

SPX AB-1270 Car Lift Power Unit

EAN: 0662536387705

UPC: 662536387705

Vehicle Lifts, Hoists & Jacks

This power unit should fit almost all lifts. Unit is 208-230V AC 3450 RPM 1PH 60 Hz. Brand new with full factory warranty.
Specifications: Motor: 208-230V AC 3450 RPM 1PH 60 Hz. Test: Dielectric Std. 2.16.15. Pump: AFC 2.0 CC/Rev. (.122 Cu. In./Rev.)
Relief: Fixed at 2750 PSI (191 Bar) Nominal. Endhead: 3/8 NPTF Aux. Port (Plugged) 9/16 SAE Pressure-Return Port
Tank: Plastic 4.0 Gallon Vert. Tank Down Mtg. 700 Cu. In. Useable + Reserve & Vent Screw. Valving: Check Valve (Cartridge-Style) Manual Release Valve (Cartridge-Style)
Wiring: 230V AC Directly to Motor Momentary "On" & Pull-Type Actuating Sealed Limit Switch

This power unit fits almost every 2 post or 4 post lift. You may have to add a small hydraulic fitting, although most lifts should not need this. The bracket has adjustable slots, but you may need to drill holes in your mounting plate on your lift, but I doubt that will be necessary. This model has the overhead kill switch (if your lift does not use the kill switch, simply don't use it). This unit is 220 volts. It is made by SPX and made in the USA. Brand new with full factory warranty. This is the same power unit brand that BendPak, Challenger, Forward and Rotary uses on their lifts.
