Pushbutton Switches Alpinetech M16F

Alpinetech

M16F

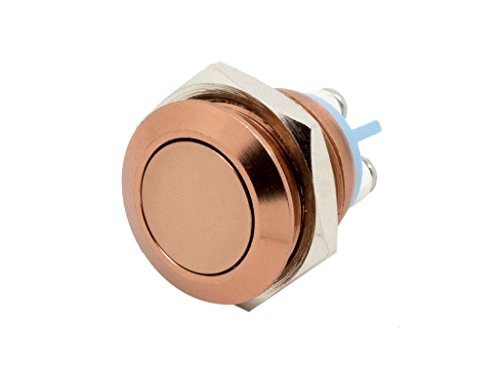

Alpinetech 16mm 5/8 Metal Push Button Switch Momentary Screw Terminal Flush Mount Normally Open 1NO (Brown)

EAN: 0797435704053

UPC: 797435704053

Pushbutton Switches


Momentary Type - Push & Hold ON, Release OFF
Easy installation with screw terminals
High IP67 Protection for used in wet or dusty enviroment.
Great for electronmagnetic Starter, relay, Horn Button Switch, PC Power Switch or any circuit controls.

Mounting Cut Hole: 16mm (5/8"), Head Diameter: 18mm, Operation Type: Momentary, Switch Contact: 1NO (Normally Open), Head Shape: Flat, Max Switch Rating: 3A/250VAC, Terminal Type: Screw, Body Material: Aluminum, Button Material: Aluminum, Contact Material: Silver Plated Gold, Protection Rating: IP67/IK10, Operation Temperature: -20C - 55C, Panel Thickness: 1 - 6mm, Depth Behind Panel: 20mm, Mechanical Life: 1,000,000 Cycles
