SMAKN® HG7881 7881 2-Channel Motor Driver Module

EAN: 0799637897526

UPC: 799637897526

Ignition

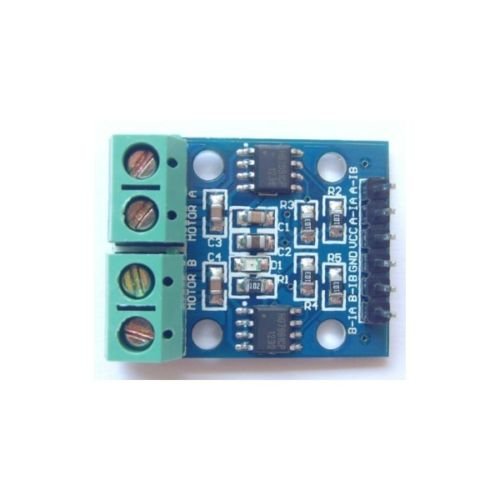

HG7881 7881 2-Channel Motor Driver Module
module can drive 2 DC motors simultaneously, or one 4-wire 2-phase stepping motor
module input voltage: 2.5-12V
has a continuous current of 800mA per channel output capacity
PCB size: 29.2 (mm) x23 (mm)

1. onboard 2 HG7881 motor controller chip
2. module can drive 2 DC motors simultaneously, or one 4-wire 2-phase stepping motor
3. module input voltage: 2.5-12V
4. has a continuous current of 800mA per channel output capacity
5. PCB size: 29.2 (mm) x23 (mm)

The HG7881 (L9110S) Dual Channel Step/DC Motor Driver Module is a compact board that can be used to drive very small robots.

This tiny module has two independent HG7881 (L9110S) motor driver chips which can each drive up 800mA of continuous current. The boards can be operated from 2.5V to 12V enabling this module to be used with both 3.3V and 5V microcontrollers.

A set of male header pins is used to connect this module to your robot's microcontroller brain. The motors are attached via two sets of screw terminals.

A PWM Pulse Width Modulation signal is used to control the speed of a motor and a digital output is used to change its direction. This module can also be used to drive a single four line two phase stepper motor. Four holes make this board easy to mount onto your robot or other project.

Motor Control Interface
Pin Description
B-IA Motor B Input A (IA)
B-IB Motor B Input B (IB)
GND Ground
VCC Operating Voltage 2.5-12V
A-IA Motor A Input A (IA)
A-IB Motor A Input B (IB)

Motor Truth Table
IA IB Motor State
L L Off
L H Forward
L H Reverse
H H Off
We recommend applying a PWM signal to input IA to control the motor speed and a digital output to input IB to control its direction.
