Transparts Warehouse

BK162WS

Transparts Warehouse BK162WS Toyota W55 W56 W58 Transmission Kit with Rings

Rebuild Kits

Our transmission rebuild kits are of the highest quality and meet all standards set by professional installers
High quality Japanese manufactured bearings (Nachi and Koyo)
Includes: bearings, seals, gaskets
Includes; Synchro Rings

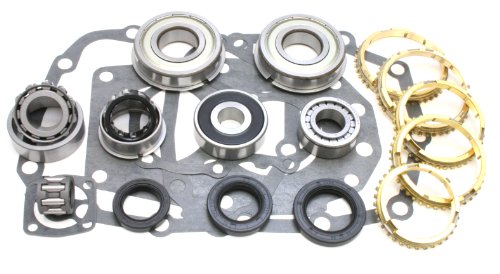

This Toyota W55 W56 W58 5 speed manual transmission rebuild kit is a complete rebuild kit with synchro rings. You can identify this transmission by the 7 bolt front bearing retainer, a 21mm wide input bearing (HR6307NX or 6307-N) and a cast iron center plate. This transmission also has the reverse gears in the 4x4 adapter or tail housing, not in the case section. If your transmission has ever had the input shaft replaced from the factory for any reason, there may be HR6307NX on the outer race of the bearing and 35TM11 on the inner race. This setup has an inner race that is thicker than the outer race. If you have this setup you will need a different kit. This kit includes all the bearings, synchro rings.
