3SX

OILCOOLERKIT-3SXFMOC

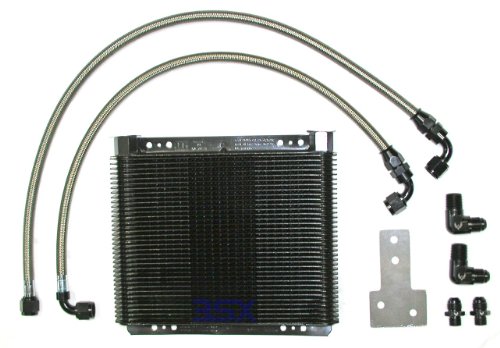

3000GT Front Mount Oil Cooler Kit FMOC Stainless PTFE Lines B&M Core

Engine Oil Coolers

Replaces old factory turbo oil cooler and lines with front-mounted kit using stainless braided lines
Larger B&M core offers better cooling capacity
Professionally made stainless braided PTFE lines ensure long life
Custom installation required (bumper removal, modify parts, etc)

Designed for the twin turbo 3000GT VR4, this kit replaces your stock oil cooler setup with custom stainless braided PTFE lines and fittings, and an oversized B&M oil cooler core measuring 8.5x11x1.5 inch. It is a kit that is larger and WAY cheaper than the stock oil cooler setup, should yours need replacing. It is also the perfect addition for the owners doing the twin turbo conversion - you will, however, also need the turbo oil filter housing for the feed/return hookups. NOTE: This kit, while bolt-on is easiest installed with the front bumper removed. It does require you to move or remove the driver side horn as the bracket uses its mount holes. Also, you may need to alter/bend the power steering loop/pipe that runs across the front of the car so it clears the oil cooler core. And you may need to trim the plastic shrouds between the bumper and lower part of the radiator. NOTE: The 2 fittings going into the cooler core are NPT fittings - meaning they taper in - so the angled fittings will NOT thread all the way into the core. Simply thread them in until they are tight. You can use teflon tape as well.
