utipower

1108S

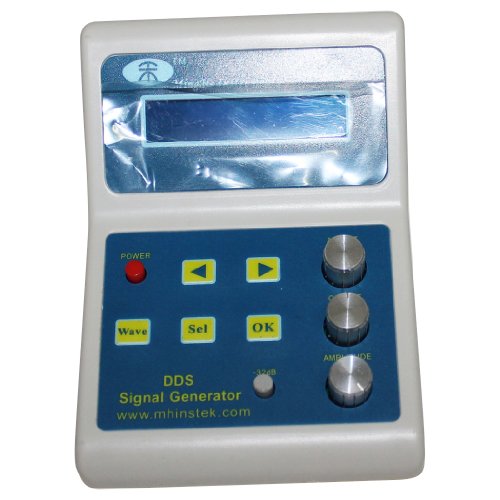

1108S MHz with frequency sweep function DDS Function Signal Generator Source

EAN: 0701142782662

UPC: 701142782662

Batteries & Accessories

UDB100X series direct digital synthesis signal generator use DDS technology and FPGA design with the characters of high stability and low distortion ect., It's the ideal equipment of electronic engineer, laboratory, production lines, the teaching and scientific research
The UDB100xS series adds a PC communication control functions.
Can connect a PC to communicate and use computer software to control instruments
Should be noted that the amplitude and DC offset can not be programmed, and other functions (frequency, duty cycle, waveform set and the sweep time and the corresponding control, read outside the measurement frequency, etc.) are able to achieve the programmed function

UDB11xx(UDB11xxS) series direct digital synthesis signal generator use DDS technology and FPGA design with the characters of high stability and low distortion ect.,
with the function of TTL output and 60MHz frequency meter, SG100xS series have sweep function, the start and end frequency and sweep time can be set at will.
It's the ideal equipment of electronic engineer, laboratory, production lines, the teaching and scientific research.
Main technology data
1.Signal Output function
Output amplitude >=9Vp-p (signal output,no load)(MAX) About 0.1Vp-p(MIN) Output impedance 50 omega +/-10%(signal output) DC offset +/-2.5V(no load) Display LCD1602 Frequency range 0.01Hz - 2MHz(UDB1102) 0.01Hz - 3MHz(UDB1103) 0.01Hz - 5MHz(UDB1105) 0.01Hz - 8MHz(UDB1108) Resolution 0.01Hz(10mHz) Frequency Stability +/-1x10-6 Frequency accuracy +/-5x0-6 Sine wave distortion <=0.8%(reference frequency is 1kHz) Trinagle linearity >=98%(0.01Hz-10kHz) Rise and fall time of square wave <=100ns Square Wave Duty range 1%-99%(digital control mode) 2.TTL Output function
Frequency range 0.01Hz - 2MHz(UDB1102 or UDB1102S) 0.01Hz - 3MHz(UDB1103 or UDB1103S) 0.01Hz - 5MHz(UDB1105 or UDB1105S) 0.01Hz - 8MHz(UDB1108 or UDB1108S) Amplitude >3Vp-p Fan Out >20 TTL loads 3.COUNTER function
Counter Range 0-4294967295 Frequency Meter Range 1Hz-60MHz Input Voltage Range 0.5Vp-p -20Vp-p 4.SWEEP function(as for UDB100xS series)
Frequency range fM1 to fM2 Sweep time 1s-99s 5.Others function
Save and Load Parameter M0-M9(M0:default load)
