RioRand

RRQSSSSSSSSSS

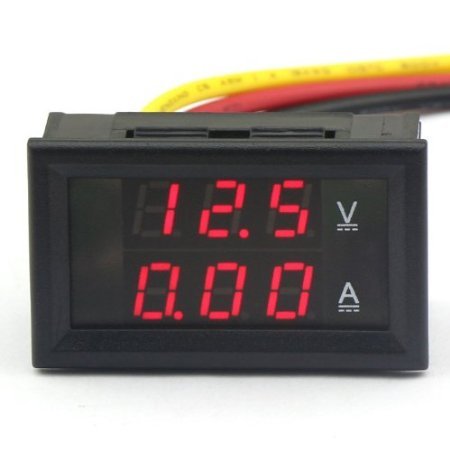

RioRand 2in1 4.5-30V/10A Digital Voltage Detector DC Current Volt Amp Meter Red LED 12 Volt Tester, 3-wires,Build-in Shunt

EAN: 0619636133145

UPC: 619636133145

Ammeters

Powered by RioRand Advanced Technology

Features:
Dual LED: Red voltage and current, Display Voltage Current on one screen.
this panel meter is common ground design, it means that the ( measure ground wire) and (power supply ground) is common ground.
Power Supply DC 4.5-30V. With reverse polarity protection, but the max power supply can not exceed 30VDC.
Specific:
Power Supply (Measure Voltage): DC 4.5-30V
voltage < 10V, resolution: 0.01V
voltage >= 10V, resolution: 0.1V
Measure Current: 0-10A forward current ( built-in shunt, can measurement directly )
Current Resolution: 0.01A
Operating Current: <20mA
Display: 0.28" Red LED
Dimensions: 48 x 29 x 21 mm
Cutting Size: 45 x 26 mm
Measurement rate: ≥ 500mS / times
Accuracy: 1% (± 1 digit )
Operating Temperature: -10°c ~ +65°c
Operating Humidity: 10 ~ 80% (non-condensing)
Working pressure: 80 ~ 106kPa
Wire Connection:
COM: Black wire, measure common ground
PW+: Red wire, Power Supply +, Measure Voltage +
IN+, Yellow wire, Measure current input. if use the voltmeter function only, please connect the Yellow wire and black wire together to avoid the Interference
More detailed please check the description picture.
Package Include:
1x Ammeter/Voltmeter 2in1
