RioRand

RRQWEUAOAPVPNBTA

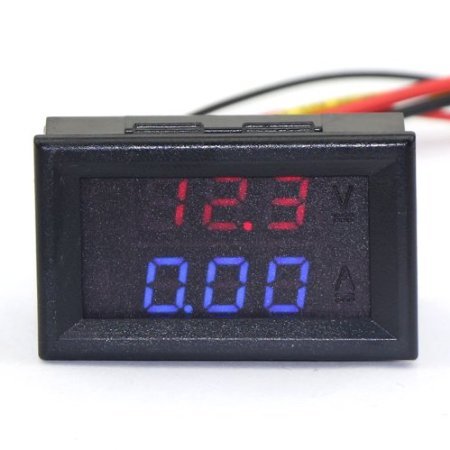

RioRand Digital DC Voltmeter/Ammeter 2IN1 Dual 0.28 LED Tester 0-100V/0-10A Amp Volt Panel Meter

EAN: 0619636132650

UPC: 619636132650

Ammeters

Powered by RioRand Advanced Technology

Features:
Cutting Size: 45mmx26mm
Dimensions: 48mmx29mmx21mm
Power Supply: DC 3.5-30V
Voltmeter Range: DC 0-100V (resolution of 0.1V)
Ammeter Range: DC 0-9.99A (Direct measurement, no requirement of shunt)
Display: Dual 0.28" three digit LED tube
Display Color: Voltmeter Red, Ammeter Blue
Refresh rate: about 500ms / times
Accuracy: + / - 1% + 2 digits
Note:
if measure the current over than 5A for long time. please welding the wires to the meter port, to avoid High impedance and unstable working.
Wire Connection:
Thin Red line (VCC): Power Supply + (DC 3.5-30V +)
(if the measure voltage between DC 3.5-30V, then the Thin Yellow line and Thin Red line can connect together)
Thin Black line (GND): Power Supply - (DC 3.5-30V -), Measure Voltage - (DC 0-100V -)
Thin Yellow line (VIN): Measure Voltage + (DC 0-100V +)
Thick Red line (I+): Current Input +
Thick Black line (I-): Current Input -
More detail please check the description picture.
Package Included:
1x 2in1 Voltmeter/Ammeter Gauge
