Nextrox

OT113-HM

Nextrox® PC Computer 2 Channel Digital Oscilloscope

EAN: 0612306275237

UPC: 612306275237

Lab Scopes

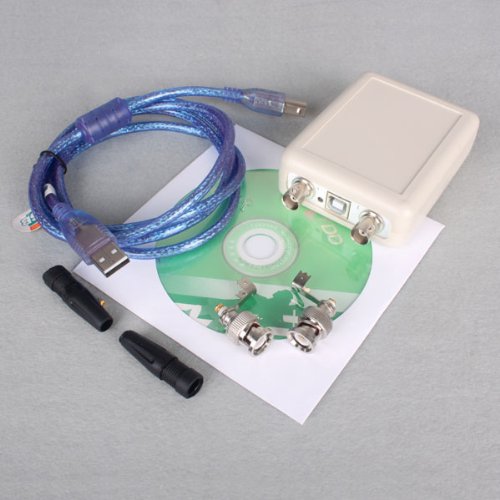

2 BNC tie-ins
USB 2.0 cable
CD which includes instruction manual and driver installer

Product Description
Portable USB Oscilloscope 2 Channel PC Computer Storage Digital Oscilloscope
View and save signal voltages with this compact 2 channel PC storage oscilloscope which plugs into your USB port.

Benefits
• 2 channel input and synchronized display
• Measures range automatically
• 4 available modes
• Input capture (trigger) function
• Able to set any channel as the source of the capture (trigger) signal
• Able to set rising or falling edge to capture (trigger) signal
• Adjustable capture (trigger) signal level
• Powered directly by USB port - no batteries or external power supply required
• Use with electronic teaching equipment
• Carry out acoustic tests and research
• Ideal for SCM development
• Examine and repair apparatus and appliances

Technical Parameters
• PC connection: USB
• Operating systems used: W2K, XP
• Signal input: BMC connection with universal oscillograph probe
• Max sampling: 8kHz x 1/ (4kHz x 2)
• Voltage: 5V USB port supply
• Current: 60mA
• Measurable frequency: 0Hz -----3kHz
• DIV array: horizontal 16DIV x vertical 10DIV
• Input impedance: 1M
• Max voltage: 0---5V
• Error of voltage measurement: ±30mV
• Adjustable range of time domain: 10 mS/DIV----10800 S/DIV
• Error of time measurement: ±0.01%
• Capacity of data record & save: 8388608 x 2
• Max time of data record & save: 93 hours
