USSR

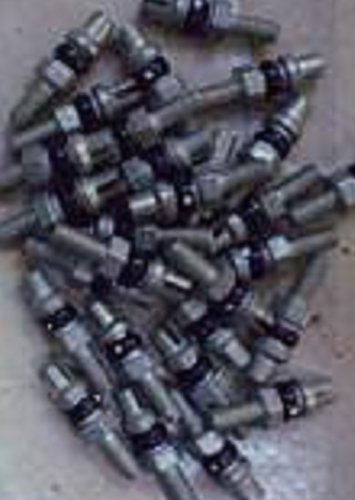

Diode silicon 2D220V 50 kHz. 800V USSR 1 pcs

EAN: 4602985635329

Diode Trios

There are more than 25 000 items in our stock. The full listings can be found here www.amazon.com/shops/A19NX3RFNSYB6R
If you can't find the item you need, you may contact us.
2D220V Silicon diodes, diffusion. Designed for use in rectifier and converter devices in the frequency range 1 ... 50 kHz The main technical characteristics of the diode 2D220V: Uobp max - Maximum Reverse Voltage: 800V; Uobp and max - Maximum peak reverse voltage of 800 V; Inp max - Maximum forward current: 3 A; Inp and max - Maximum peak forward current: 60 A; Unp - DC forward voltage: less than 1.2 V at 1 A Inp; tvoc arr - Reverse recovery time: 500 ns

Diode silicon 2D220V 50 kHz. 800V USSR 1 pcs
