Blow Off Valves Auto Dynasty AD-BOV-GRS-SL

Auto Dynasty

AD-BOV-GRS-SL

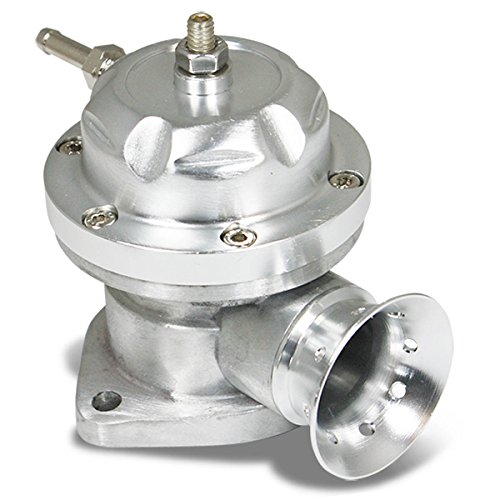

Universal Aluminum Type-RS Turbo Blow Off Valve BOV (Silver)

Blow Off Valves


High-quality diaphragm and short stroke significantly increase response
spring system promoted response and allows for high boost pressures
40mm, Hard-Anodized Valve for Increased Airflow
Draws in surrounding air and releases aggressive unique discharge sound
2 bolts mounting design for easy installation

Blow-Off Valve (BOV) is a pressure relief device on the intake tract to prevent the turbo's compressor from going into surge. When the throttle is closed rapidly, the airflow is quickly reduced, causing flow instability and pressure fluctuations. Surge can eventually lead to thrust bearing failure due to the high loads associated with it. This Blow Off Valve uses a combination of manifold pressure signal and spring force to detect when the throttle is closed. When the throttle is closed rapidly, the BOV vents boost in the intake tract to atmosphere to relieve the pressure, helping to eliminate surge.

Package Included:
  • 1 x Type-RS blow off valve kit

    Notes:
  • Universal Application, Great for All Turbo Upgrade
