3LBUNI-J

Dave's Customs Unlimited 3LBUNI-J - 3-Link Conversion Brackets for Johnny Joint

Damper & Steering Stabilizers

Johnny Joint
Handcrafted product made in the USA from USA-sourced materials

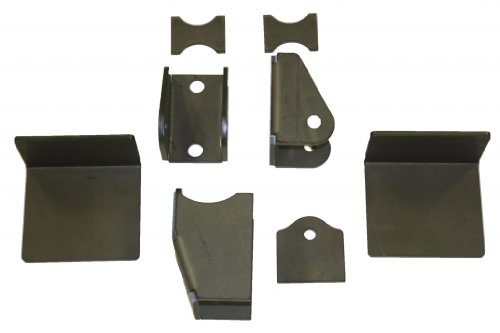

3-link conversion brackets
Jeep CJ, YJ, TJ, early Bronco, or Toyota

Universal heavy-duty 3-link conversion brackets were designed to eliminate all the guess work with the proper geometry all figured out to help minimize rear squat and rear steer.Upper and lower link mounts are integrated into one unit and are a great way to 3-link the front or stretch the wheelbase of your Jeep and have a coil spring or coilover shock front suspension.Brackets fit the front frame of most Jeep CJ, YJ, TJ, early Bronco, or Toyota.Upper link mounts can be angled out for adequate placement of lower links and then get welded to an L section of steel. Upper mount is a straight design which can be mounted on either driver or passenger side frame bracket, which allows the installed more flexibility to locate the upper control arm in the best location because of engine, transmission, and exhaust clearance. Then, you can simply slip them onto the frame and weld in desired locationBrackets sold as a pair and are CNC laser cut and CNC bent from USA-made 1/4" HRP&O steel.Each upper and lower link mount has a 9/16" hole (which can easily be drilled out for larger bolts), which is designed to fit 1 1/4" x 1" rod ends with high style misalignment bushings or Johnny style joints with 2 5/8" mounting width.No mounting hardware included with the brackets.With this 3-link setup, a front track bar is necessary to locate the front end underneath your rig.
