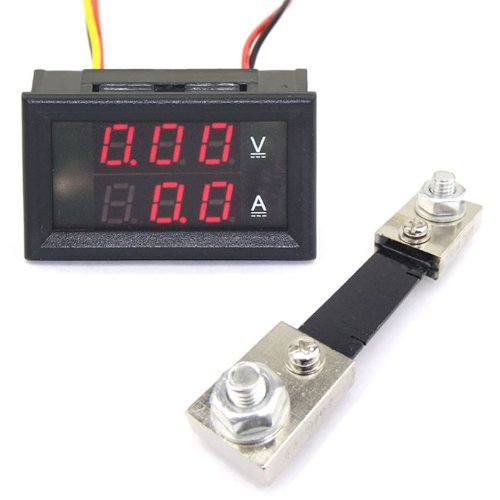

RioRand DC 0-100V/100A VA 2in1 Red LED Gauge Amp Volt Ammeter With Shunt Resistance

EAN: 0619636130069

UPC: 619636130069

Ammeters

Powered by RioRand Advanced Technology

Features:
Operating voltage:DC 4.5 ~ 30V
Measure voltage: DC 0 ~ 100V
Minimum resolution(V): 0.1V
Measure current :DC 100A (require external shunt)
Minimum resolution(A): 0.1A
Operating Current: <20mA
Display: three 0.28" LED digital tube
Display color: Red (dual display)
Dimensions: 48 x 29 x 21mm
Mounting cutout: 45.5 x 26.5mm
Refresh rate: about 500mS / times
Measure accuracy: 1% (± 1 digit)
Operating temperature: -10 to 65° c
Operating Humidity: 10 to 80% (non-condensing)
Working pressure: 80 to 106 kPa
Wiring:
Black line (thin): vacant or buck circuit (module) negative
Red line (thin): power supply+
Black line (thick): COM, common measuring
Red line (thick): PW+, measuring terminal voltage input positive
Yellow line (thick): IN+, current input+
(Please refer to the wiring diagrams for more details)
Notice:
The voltage between the thin red and thin black lines must be within DC 4.5-30V The ammeter can only be connected to the negative of the device under test
Exceeds 5A, long-term full load working continuously, it is recommended that the measurement side of the leads are directly soldered to the socket
When the black thin line vacant, it is better to use insulating tape around the exposed part of the wire, to prevent short circuits
If just be used as a voltmeter, it is recommended that the yellow line and the black line were connected together, to prevent the ammeter digital flashing
Package includes:
1x Digital Volt Amp Meter
1x 100A/75mV Current Shunt
