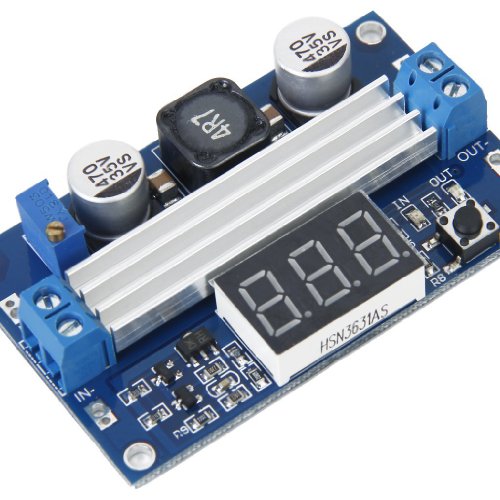

ColorMax

CM-002

Adjustable LED Digital Step Up Power Boost Module

EAN: 0799559257538

UPC: 799559257538

Boost Controllers

Input Voltage: 3-35V
Input Current: 9A (Max)
Output Voltage: 3.5-35V (Note: step-up mode, output must be higher than the input)
Output Current : 6A (Max)

Description:
Input Voltage: 3-35V
Input Current: 9A (Max)
Output Voltage: 3.5-35V (Note: step-up mode, output must be higher than the input)

Output Current : 6A (Max)
Output Power: 65W
Transfer efficiency: 96% (Max)
Output Ripple: 40mV(TYP)
Voltmeter Range: 4~40V, error +-0.1V
Size (L x W x H): Approx. 6.75 x 4.15 x 1.40 cm
Input Voltage----Output Voltage----Output Current---Output Power----Efficiency
5.0V-------------12V---------------1A---------------12W--------------94.1%
5.0V-------------12V---------------2A---------------24W--------------93.1%
7.4V-------------12V---------------1A---------------12W--------------95.4%
7.4V-------------12V---------------2A---------------24W--------------94.8%
7.4V-------------18V---------------1A---------------18W--------------94.5%
7.4V-------------18V---------------2A---------------36W--------------94.2%
7.4V-------------18V---------------3A---------------54W--------------93.8%
12V--------------18V---------------1A---------------18W--------------96.1%
12V--------------18V---------------2A---------------36W--------------95.5%
12V--------------18V---------------3A---------------54W--------------94.3%
18V--------------24V---------------1A---------------24W--------------96.5%
18V--------------24V---------------2A---------------48W--------------96.2%
18V--------------24V---------------3A---------------72W--------------95.7%
24V--------------32V---------------3.5A-------------112W-------------96.4%
Package Includes:
1 x Adjustable Power Supply Module
