RF Explorer

RFEM WSUB3G Module

EAN: 0701748879100

UPC: 701748879100

Relay Control Module

Easy to plug in your RF Explorer unit, compatible with all models.
Includes a transport EVA carry case for RF Explorer
Extend band coverage to any frequency starting at 15MHz and going up to 2.7GHz.
Lifetime free firmware upgrades available, open to community requested features
This unit does not include RF Generator functionality, only Spectrum Analyzer functionality.

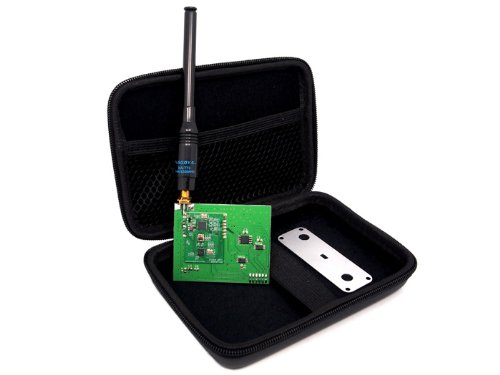

RFEMWSUB3G is an Expansion Module for any RF Explorer. It can be plugged in your RF Explorer unit to extend the coverage to 15-2700 MHz (0.015-2.7GHz) continuous frequency band. It gets attached internally to the RF Explorer main board and exhibits a second antenna connector to cover the new band. This expansion module can measure very interesting frequency areas such as 2m HAM radio, all VHF and UHF, FM radio, GPS, WiFi and WiMax, Bluetooth, etc. Specification Frequency band coverage: 15-2700 MHz Standard SMA 50 ohms connector Amplitude resolution: 0.5dBm Dynamic range: -110dBm to -10dBm Absolute Max input power: +30dBm Average noise floor level (typical): -100dBm 50 ohms wideband Nagoya NA-773 telescopic antenna included Frequency stability and accuracy (typical): +-10ppm Amplitude stability and accuracy (typical): +-6dBm Frequency Span: 100MHz Frequency resolution: 1Khz Resolution bandwidth (RBW): automatic 3KHz to 600KHz Expansion RAM: 64KB Expansion ROM: 2MB Firmware: RF Explorer must upgrade to firmware v1.09 or higher to use this module. Note some of the features and operation accuracy will be improved in upcoming lifetime free firmware revisions.
