Improved Racing

ENV-150-06SB

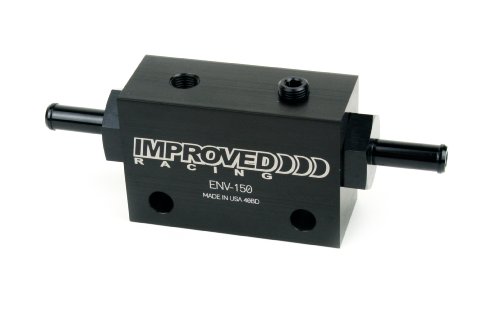

Improved Racing ENV-150 Dual Inline Oil Sensor Manifold Block, 3/8 Hose Barbs

Accessories

Universal sensor manifold accommodates two 1/8" NPT sensors or oil supply lines for a turbo or supercharger
Features female -10AN O-ring boss threads and a large diameter passage that allows for high volume flow and minimal pressure drop. Includes two black anodized aluminum fittings for -12AN lines
Two mounting holes for bolts up to 8mm (5/16") in diameter
6061-T6 billet aluminum construction and black anodized finish
Made in USA. Lifetime manufacturer's warranty

Improved Racing's inline oil sensor manifold allows for easy installation of two 1/8" NPT oil sensors on your oil cooler (or transmission cooler) line. The flow-through design of the manifold makes it ideal for monitoring both oil pressure and oil temperature and can also be used to supply oil to a turbocharger. Two units can be used together - one before the cooler and one after - to monitor an oil cooler's efficiency and pressure drop. The manifold features -10AN O-ring boss threads and a large diameter passage that allows for high volume flow and minimal pressure drop. Fittings are available to accommodate 3/8" hose or -6AN through -12AN lines. These universal sensor manifold blocks can also be used in laboratory and industrial applications. We use them in our own lab for testing oil coolers.
