Bestfavor

003CP-32

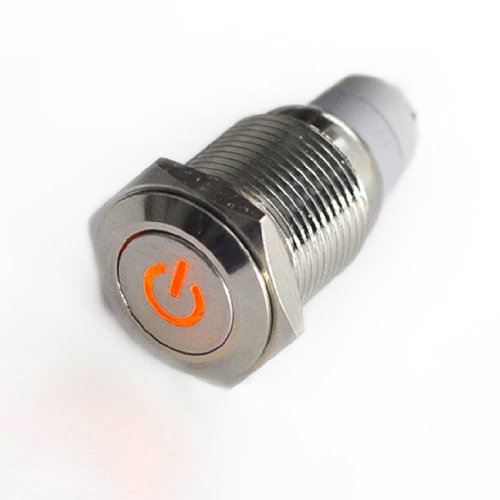

New 12V Led Light Silver Metal Stainless Steel Switch Power Push Button Switch Orange

EAN: 0799975400242

UPC: 799975400242

Interior Light

Head diameter 3/4" (18mm)
Button diameter 3/8"(10mm)
Hole size required 5/8"(16mm)
Depth inc contacts 1.5"(35mm)
Shipping from US.

Widely Use:
Can be use as a switch for various additional electric equipment inside & outside the car.(Such as Critical lights, chassis lamp, fog lamps, dome light)

Product Features:
1. Latching type, push it -- on, push it again -- off
2. Switch rating:5A/250VAC
3. Led voltage:12V only
4. Contact configuration:1NO1NC
5. Operation pressure:about 4N
6. Operation type:latching
7. Led power switch 5/8"(16mm)

We switch has five feet, respectively +, -, NO, NC, C.
+: Anode
-: Cathode
NO: Normally open point
NC: Normally closed point
C: Common point

Note:
- Remember never can take C positive, take the NC and NO negative, this switch is sure to burn.

Package Includes:
1 X Push Button Switch
