Kisan Electronics

P115W-A2W

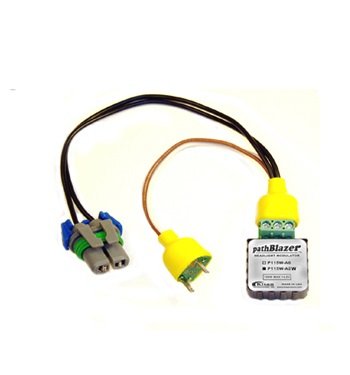

Kisan pathBlazer P115W-A2W - Headlight modulator for 9000 series bulbs - plug-n-play

Headlight Bulbs & Assemblies

Compact size plug-n-play - fits in tight space Programmable sensitivity - for Daylight sensor
CAN-bus compatible - for newer bike models
Dual Side-by-side versions - or Dual Hi/Lo versions
Low cost version - single wire ISO-tap hook-up
Designed, developed and assembled in USA

P115W-A2W is a plug-in version for 9000 series Hi-beam bulbs. Typically these bulbs have elbow style plug. ? The pin spacing is wider than H8, H9 or H11 style bulbs. Unit is 1.0" (25.4mm) by 1.35" (34.4mm), and externally mounted. The matching 2-pin adapter makes this a plug-n-play unit. pathBlazer circuit modulates the hi-beam current - from 100% ON to about 17% OFF. This is accomplished by using a p-channel MOSFET, which is inherently safe. pathBlazer comes with a detachable daylight sensor, which simply plugs into the pathBlazer. The daylight sensor functions as a switch; it stops modulation when it cannot see enough daylight. Daylight Sensor is programmable. If you turn the high beam on and then turn the ignition on three times quickly, the sequence is interpreted as an active command to change the sensitivity. pathBlazer uses a soft switching technique, which throttles the current flow through the bulb filament, so that there's no "thermal shock" - as opposed to a sudden inrush of current, which can damage the bulb filament or shorten its life considerably. This is far superior than maintaining a small voltage! Select hi-beam to modulate - as long as there's sufficient daylight. If you enter a tunnel or if it gets dark, it will stop the modulation of the hi-beam and stay ON steady. Select lo-beam to end modulation.
