JE Pistons

293562

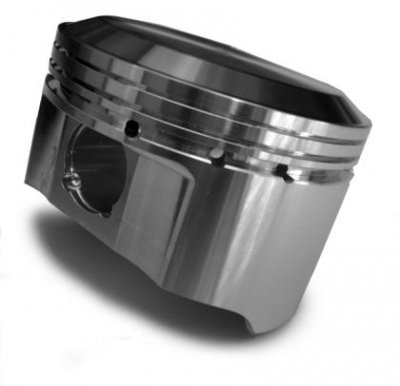

JE Pistons (293562) Piston for Big Block Chevy, Set of 8

EAN: 0987654293562

UPC: 987654293562

Forged

Chevrolet > All Models
** NOTE : PRODUCT IMAGE MAY NOT BE VEHICLE SPECIFIC

For over 60 years JE Pistons has been the industry leader in forged racing pistons for Chevy Ford Mopar and Buick engines. Application Specific Forgings for an Optimized Uniform Crown Thickness Contact Reduction Groove to Minimize Frictional Drag Accumulator Groove for Increased Top Ring Stability and Sealing CNC-Machined Side Relief with Lower Support Band for Additional Skirt Strength Honed Pin Bores Double Pressure Fed Pin Oilers and Wire Locks Included Bore:4.500 Stroke:4.000 Rod:6.385 Block Height:9.780 Compression Height:1.395 Dome Volume:30.9 Weight (Grams):713 g Compression Ratio:12.0 : 1 (110cc) | 11.0 : 1 (118cc) | 10.5 : 1 (124cc) Alloy:2618 FORGED ALUMINUM Ring Package Designed For: 1/16 1/16 3/16 Rings Suggested JE Rings (Not Included): J820F8-4500-5 Included Locks: Double spiro locks (#990-042-CS) Included Pins:JE Straight Wall Pin #990-2930-20-52S (186g) Application Note: Oil Rail Support is Included
