Launch-X431

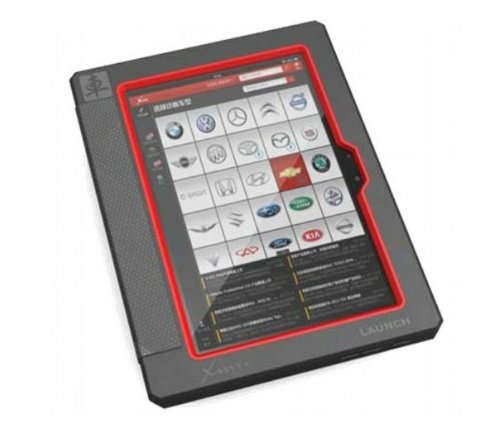

Launch X431 V+ (X431 Pro+) Wifi/Bluetooth Tablet Full System Diagnostic Tool

EAN: 6965191932360

Car Safety & Security

Panel PC: High configuration of hardware , fast running speed. Capacitor Screen: Multi-touch capacitor screen, more smooth operation.
WIFI Diagnosis: Wireless communication between intelligent mobile terminal and DBSCar connector via Bluetooth. Portable: Reasonable PDA design, small size for easy carry.
Optimized Interface: Brand new operation interface design, interface more friendly and operation much easier. Wifi communication: Support WIFI network. Android System: Users can install and Android software.
Numerous Additional Functions: Photo, video, multimedia, other software application,etc. One click update: You do not have to download software to memory card anymore, can do one click update directly through your machine.
X-431 V+ taking the advantage of mobile internet, can share maintenance data and case library, provide instant maintenance information, and build public and private maintenance social circle,etc.,thus lead to wide car diagnostic community. Launch X431 V+ with Bluetooth/Wifi based on Android system, is a new car malfunction diagnostic device developed by Launch Tech for internet application. X-431 V+ completely substitutes X431 IV and X431 Diagun III. It is a typical diagnostic device contributed by Launch to diagnostic industry concerning internet application.


1. HUAWEI HiSilicon Quod-core 1.2G HZ, speed faster.
2. 10.1 inch multi touch capacitor screen give you better view for diagnose and data stream.
3. 1GB memory and 8GB storage for data.
4. Contain 72 car brand from USA, European, Asia and so on.
5. Support wifi/bluetooth and one click update, make your update job much easier.
6. 6600mAh Li battery can let you continue work 8 hours.
7. Supported Languages: English, German, French, Italian, Spanish, Portuguese, Polish, Russian, Japanese, Traditional Chinese
8. Original goods with full time technical service and guarantee.

X-431 V+ Parameters:

Pannel Computer Parameters:
CPU: HUAWEI HiSilicon Quod-core 1.2G HZ
Screen:10.1 inch Multi touch capacitor Screen
Screen Resolution:1280X800
Operation system:Android4.0
Memory:1G
Storage:8GB
Battery:Polymer Lithium-ion battery, 6600mAh
Camera :0.3M pixels front , rear 3.2M pixels
Operating Temperature :0°C~+45°C
Storage Temperature :-10°C~+45°C

DBSCar Connector Parameters:

Connection: Standard OBDII Interface, Micro USB 2.0
Typical Power Consumption:(12V)Static current 25 mA,
overall unit average current 35 mA
Working Temperature: - 20 °C~6 0°C
Storage Temperature: -30°C~70°C
Working Voltage: powered by vehicle battery, DC 9V-15V

Packlist:

X-431 V+ pad computer
1pc x MicroSD card, SanDisk 32G capacity, RoHS
1pc x X431 PIN envelope
4pcs x Clipper fuse 5*20mm
2pcs x Lighter fuse 6*30mm
1pc x OBDII -16 extension 135mm, RoHS
1pc x OBD I Adaptor BOX switch wiring
1pc x LIGHTER
1pc x CLIPPER
