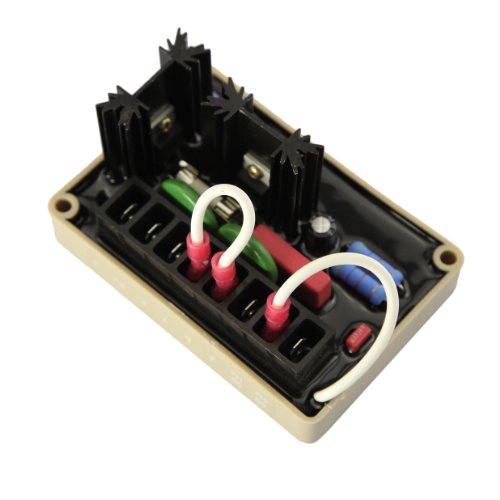

TabStore DBPower® AVR SE350 Automatic Voltage Regulator 190-240V AC Input for Brushless AC Generator
EAN: 6955899032394
Voltage Regulators
Encapsulated electronic voltage regulator that controls the output of a brushless AC generator by regulating the current into the exciter field
Voltage Buildup: Internal provisions for automatic voltage build up from generator residual voltage as low as 10 VAC
EMI: Suppression internal electromagnetic interference filter (EMI Filter)
Sensing & Power Input: 190-240V AC. Burden: 500 VA
Power Dissipation: 8 watts maximum. Adjustable frequency compensation
Specification:
* Output Power-Continuous: 73 VDC at 3.5 ADC (255w)
* Output Power-Forcing (240Vac Input Power): 105 VDC at 5 ADC (525W)
* Regulation: 1.0%
* Remote Voltage Adjustment Range: 10% with 2000 ohm rheostat, 5% with 1000 ohm rheostat
* Roll off frequency: 54-61 Hz for 60 Hz, 45-51 Hz for 50 Hz
* Operation: Weight 6.5 oz
* Operation Temperature: -40 to +60
* Storage Temperature: -65 to +85
* Size: 3.94" L*2.66" W*2.20" H
1 * AVR SE350 Automatic Voltage Regulator
1 * User manual
2 * Mounting screws
1 * Fuses
