Hwydo

120222-001

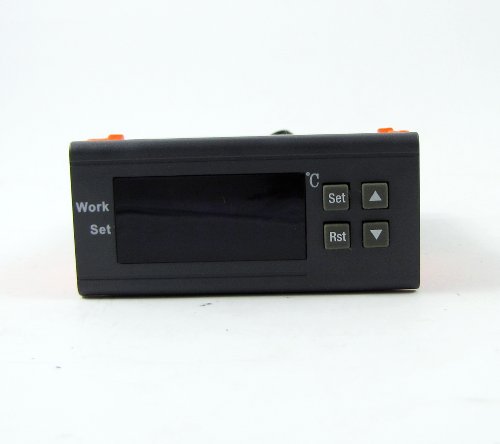

220V Digital LCD Display Electronic Universal Thermostat Temperature Controller

EAN: 0619241066357

UPC: 619241066357

Automatic Temperature Control

3 Button Description: 1). RST: Press the RST key to switch on and off, press the RST key in the off state once the boot, the boot State according to RST button for three seconds and hold off. 2). SET:
A: Press the SET key once to enter the temperature control settings, press "UP"or "DOWN" to adjust, press "UP"or "DOWN" button for three seconds does not
Quickly put into adjustment mode. Press the SET button again to exit setting mode.
4, fault tips: 1) When the sensor is disconnected, the display shows --- and close the heating wire 2) When the sensor detects the temperature lower than -50 degrees, the display shows the LLL 3) When the sensor detects a temperature above 110 degrees, the display shows HHH
5, Caution: * Cooling, heat load must not exceed the output contact, or may cause machine damage and cause a fire. Disaster. * A variety of connection wires and terminals connected to pressure well, otherwise, will cause the machine reliability. * Please separate power wiring, relays, sensors, otherwise it will damage the machine.

Terminal 1 and 2: Normally open contact relay
Terminals 3 and 4: 220V power connection
Terminal 5 and 6: Short circuit after locking thermostat factory parameter settings, the user can not modify.
Terminal 7 and 8: temperature sensor connection
Note: The "load" refers to the controlled heating or cooling equipment
