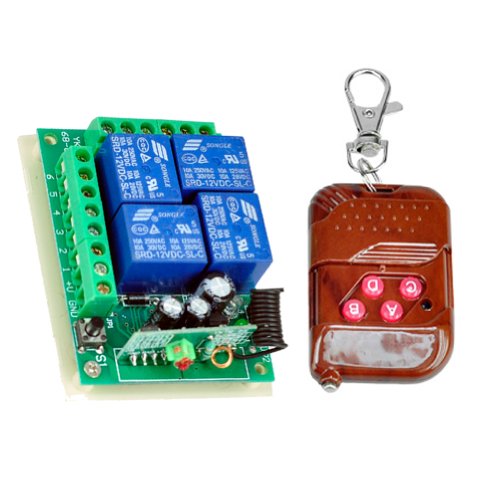

New 12V 10A Wireless Remote Control Code Receiver Momentary Switch (4 Channel)

EAN: 0799975389288

UPC: 799975389288

Accessories

Output way: 4 CH switch signal 12V voltage
Maximum Load: 10A
You can choose the jog or self-lock output way, press the button is on, loosen the button is off, or press the button is on press the button again is off
Please notice that here is 1 CH and 2 buttons wireless remote control

Features:
1. 12V 10A learning code receiver /switch with suicase cover + transmitter /remote control
2. You can turn on or turn off the receiver with transmitter(remote control) from any place within a reliable distance
3. The wireless signal can pass through walls, floors and doors
4. Receiver Sensitivity: -100dBm
5. Encoding Type: learning code
6. It uses fixed coding, stable and reliable
7. Operating Frequency: 315 MHz/433MHZ(here is in set work together .you don't have to care what frequency are they)
8. The output way is adjusted between Jog/inter-lock /self-lock

Working/Output Way:
- Jog: press one button is working. loosen your finger on the same button is stop. need one channel switch and one buttons remote control).
- Self -lock: press one button for one time is working. press the same button again is stop.(need one channel switch and one buttons remote control).
- Inter-lock: press one button is working ,press another button is stop.(need one channelswitch and 2 buttons remote control.

Learning and remove method:
1. Press the learning code. the indicator flash, loosen your finger, press any button of the remote control, the indicator flash 2 times and off. it mean you learn it successfully.
2. It can learn more than 12 PCS 2262 or 1527 chip with the different code wireless remote control.
3. Remove/clean: press the learning button about 8 seconds, the indicator turn on to off, it means the information that you keep have been removed successfully.

Package Included:
1 x transmitter (with battery and key ring)
1 x receiver (with the cover)
