Alpinetech

M19F

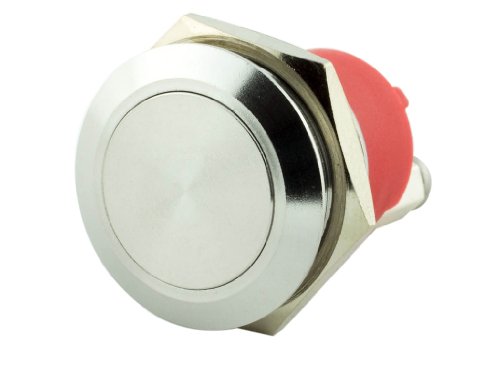

Alpinetech 19mm 3/4 Waterproof Momentary Stainless Steel Metal Push Button Switch Screw Terminal Flat Button Normally Open 1NO

EAN: 0797435704428

UPC: 797435704428

Pushbutton Switches

Momentary Type - Push & Hold ON, Release OFF
Easy installation with screw terminals
Highest IP68 waterproof protection for used in wet/marine enviroment.
Stainless Steel material for resistant to wear and abrasion.
Great for electronmagnetic Starter, relay, Horn Button Switch, PC Power Switch or any circuit controls.

Mounting Cut Hole: 19mm (3/4"), Head Diameter: 22mm, Operation Type: Momentary, Switch Contact: 1NO (Normally Open), Button Type: Flat, Max Switch Rating: 5A/250VAC, Terminal Type: Screw, Body Material: Stainless Steel, Button Material: Stainless Steel, Contact Material: Silver Plated Gold, Protection Rating: IP68/IK10, Operation Temperature: -20C - 55C, Panel Thickness: 1 - 10mm, Depth Behind Panel: 26mm, Mechanical Life: 1,000,000 Cycles
