Alpinetech

MB16E

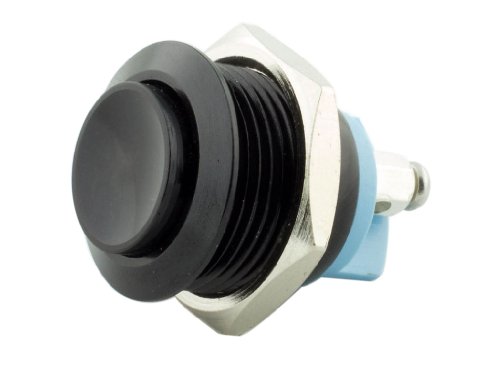

Alpinetech 16mm Metal Black Push Button Switch Momentary Screw Terminal Extended Button Normally Open 1NO

EAN: 0797435704411

UPC: 797435704411

Pushbutton Switches

Momentary Type - Push & Hold ON, Release OFF
Easy installation with screw terminals
High IP67 Protection for used in wet or dusty enviroment.
Great for electronmagnetic Starter, relay, Horn Button Switch, PC Power Switch or any circuit controls.

Mounting Cut Hole: 16mm (5/8"), Head Diameter: 18mm, Operation Type: Momentary, Switch Contact: 1NO (Normally Open), Head Shape: Raised/Extended, Max Switch Rating: 3A/250VAC, Terminal Type: Screw, Body Material: Aluminum, Button Material: Aluminum, Contact Material: Silver Plated Gold, Protection Rating: IP67/IK10, Operation Temperature: -20C - 55C, Panel Thickness: 1 - 6mm, Depth Behind Panel: 20mm, Mechanical Life: 1,000,000 Cycles
