TiAL Sport

MVR-B / 002948

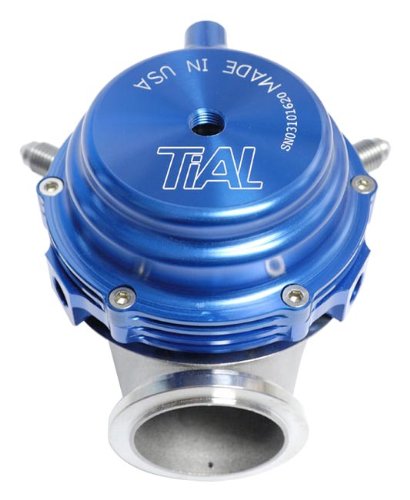

TiAL MVR 44mm Wastegate w/ 7 Springs - Blue Body

Wastegates

Item ID: TIALWGMVR44-BLU

TiAL MV-R 44mm Wastegate Features:
- Compact Design (Only 4.17" Tall)
- Multiple Air Ports - 3 Lower, 2 Upper (includes plugs for unused ports)
- -4 AN Water Cooling Ports for Actuator Top (can be removed if not utilizing)
- Stainless Steel Valve Housing
- Aluminum Actuator Housing (Anodized in Silver, Red, Blue, Purple or Black)
- Stainless Steel V-Band Inlet and Discharge Flanges
- Stainless Steel V-Band Inlet and Discharge Clamps
- High Temp Alloy Racing Valve w/ Coated Stem (protects from leaded fuel)
- High Temp Nomex Reinforced Actuator Diaphragm
- Stainless Steel Actuator Springs
- Stainless Steel Valve Seat
- Stainless Steel Valve Bushing
- Made in the USA!

TiAL MV-R Wastegate Flange Counterbore Sizes:
- Inlet: 1-7/8" OD Tubing (1.875")
- Discharge: 1-3/4" OD Tubing (1.750")

What's Inside the Box:
- One of each available spring
- MV-R 44mm Wastegate Assembly
- Two TiAL -4 AN removable water fittings
- Inlet V-Band Clamp
- Inlet V-Band Flange
- Outlet V-Band Clamp
- Outlet V-Band Flange
- MV-R Valve Seat
- 2 TiAL Air Fittings
- Plugs for unused air ports
