M&A INSTRUMENTS INC

SV-5Q

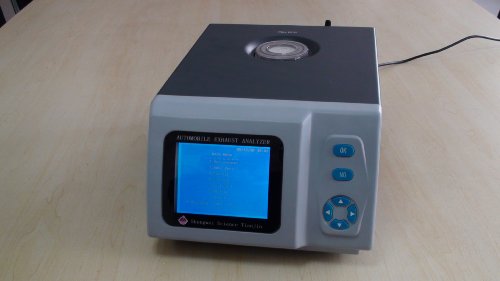

SV-5Q Automobile Exhaust Gas Analyzer HC CO CO2 O2 NO Exhaust Gas Tester

EAN: 0520361365766

UPC: 520361365766

Emissions Analyzers

As the international air shipping forbids shipping gas,liquid
so the standard package doesn't contain the calibration gas.Please buy it in your local market.
The lead time is about 7 business days, and FedEx shipping time will be about 5-7 days to USA.

Introduction:

SV-5Q automobile exhaust gas analyzer, in accordance with non-light-disguising infrared absorption method, via micro-computer analysis, directly measure the thickness of HC, CO and CO2 in the exhaust gas of vehicles and inspect the density of NO and O2 via Electrochemical sensor so as to calculate excess air coefficient λ.

Specification:

1. Environmental temperature
Temperature:-5-40℃ humidity:≦95%
Air pressure:70.0-106kPa
Power:AC 220V±10%;50Hz±1Hz or 110V,60Hz
2.Measuremnt scope:
HC:0-10000 10-6(ppm)vol
CO:0-10.0 10-2(%)vol
CO2:0-20.0 10-2 (%) vol
O2:0-25.0 10-2(%)vol　rotate speed:0-10000rpm
NO:0-5000 10-6(ppm)vol oil temperature:0-120℃
3.Sampling method:
tail gas:sampling directly,The length of sampling tube: 5m,the length of probe:900mm.
Rated rpm:Non-contact measurement method. Less than 20cm to the petrol high-voltage flexible cord,measuring petrol rotate speed.
4.preheat time: 10mins
5.resolution:
CO:0.01%　vol
　　 HC:1ppm　vol　normal hexane equivalent
CO2:0.01%　vol
　 O2:0.01%vol
NO:1ppm vol rate speed: 1rpm oil temperature:0.1℃
6.indicated error:
CO: ±0.06% vol or±5% relative error.
HC: ±12ppm vol or ±5% relative error
CO2:±0.5% vol or ±5% relative error
O2:0.1% vol or±5% relative error
NO:±25ppm vol or±5% relative error rate speed:±10rpm(0-10000rpm) ±1% measured value (>10000rpm)
7.Stability:after preheating, zero excursion and measurement distance excursion in 4 hours should not be over the allowance value of sample value error
8.Repetitiveness:≤1/2 of absolute of the allowed sample value error
9.Output signal: Number volume: RS232 serial massage exit.
