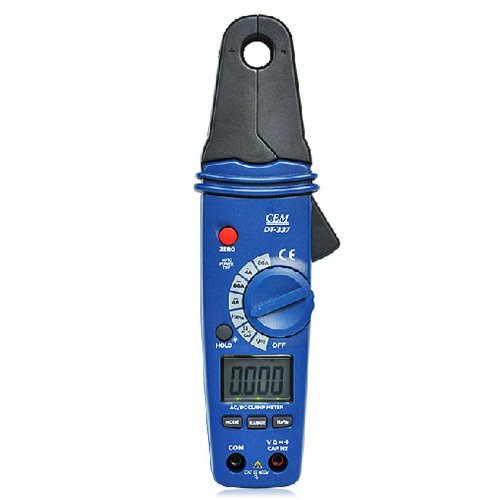

Signstek Mini Basic AC/DC Clamp Ampere Meter Tester 4A.80A 400mV~600V 5HZ~10MHZ

EAN: 6922302501235

Multimeters & Analyzers

A great tool for measuring parasitic draws and AC/DC voltage measurement up to 600 volt
Peak and Data hold functions with one rotary switch operation
Data hold and Max hold function. Auto power off
Providing wide measuring range from very small to large current

Description:

Signstek digital AC/DC current measurement is designed for measuring AC,DC, ACV, DCV, Resistance,Capacitance and Frequency, etc.
Designed with 1mA high resolution, Dynamic range of 4000 counts full scale.

Specification:

Current AC:4A, 80A ±(2.5%+5d)
Current DC:4A, 80A±(2.5%+4d)
Voltage AC:400mV~600V±(2.0%+4d)
Voltage DC:400mV~600V±(1.5%+3d)
Resistance:400Ω~40MΩ±(1.5%+2d)
Frequency:5Hz~10MHz±(1.2%+3d)
Diode Check:Test current of 0.3mA, Open circuit voltage 1.5V
Continuity Check:Threshold 50Ω, continuity beeper 2.7kHz
Size(HxWxD):210mm x 70mmx 37mm
Weight:200g

Package:

1 * DT-337 digital multimeter
1 * Test leads
1 * Package Bag
1 * Manual in English
